High Speed V Groove Cutting Machine 1540 Metal Grooving Machine

1 set
MOQ
Negotiate
Price
High Speed V Groove Cutting Machine 1540 Metal Grooving Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Colour: Blue And White; Customizable
Presser Foot Power: Hydraulic
Input Voltage: 380V; Customizable
Machinable Length: 4000mm;Customizable
Machinable Width: 1500mm;Customizable
Temper Or Not: Yes
Highlight:

High Speed V Groove Cutting Machine

,

V Groove Cutting Machine 1540

,

1540 V Metal Grooving Machine
Basic Infomation
Place of Origin: Wuxi,China
Brand Name: JM
Certification: ISO9001,CE
Model Number: GSDM
Payment & Shipping Terms
Packaging Details: Waterproof packaging
Delivery Time: 10-30days
Payment Terms: T/T
Supply Ability: 30 sets per mouth
Product Description

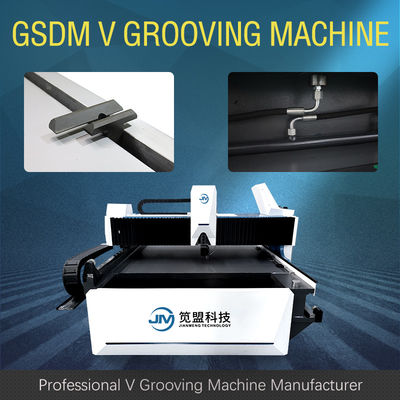

High-speed Horizontal V Groove Cutting Machine for Metal Furniture Panels



The materials to be processed by GSDM v grooving machine are fixed by hydraulic clamping system, and flexible clamping and unloading devices are used: high-precision guidance system, position measurement system and hydraulic balancing function, to meet the needs of processing board surface free of trauma as far as possible. The hydraulic pressure is adjustable and reliable. The hydraulic system is equipped with an accumulator for compensation. The motor works in a clearance manner to save energy and control oil temperature.



The base (a) and crossbeam (c) of GSDM v grooving machine are designed with frame structure, and the worktable is made of low-alloy high-strength structural steel. The machine tool is rigid and durable as a whole. The machine tool processing process shall be strictly followed, and electric furnace tempering shall be adopted to eliminate welding stress and reduce equipment deformation. Ensure excellent painting effect through sand blasting. The frame is formed by the imported CNC stereo machining center through one-time clamping processing, ensuring the parallelism and perpendicularity of each mounting surface.

Double power
The equipment is jointly driven by two servo motors and two sets of gears and racks, with higher torque, faster speed and smoother operation.

Automatic calculation of inner and outer diameters
The system can automatically calculate the slot distance according to the input size and the selected inner or outer diameter function. Reduce operation difficulty and labor cost.

No. Name Parameter Unit
1 Max. Width of metal sheet 1500 mm
2 Max. Length of metal sheet 4000 mm
3 Max. thickness(Stainless steel) 5 mm
4 Min. Thickness of metal sheet 0.4 mm
5 Min.distance of the V from edge 8 mm
6 Max. cutting speed of X axis 120 m/min
7 Max .return speed of X axis 120 m/min
8 Max.distance of  Y axis 1250 mm
9 Resolution in Y axis 0.001 mm
10 Repeated positioning accuracy ±0.01 mm
11 Resolution in z axis 0.001 mm
12 Repeated positioning accuracy ±0.01 mm
13 Motor power X1,X2 axis 5.0 kW
Y1,Y2,Z axis 1.0
14 Overall dimension Length 5900 mm
Width 2350
Height 1550



High Speed V Groove Cutting Machine 1540 Metal Grooving Machine 0    High Speed V Groove Cutting Machine 1540 Metal Grooving Machine 1
