CNC Vertical V Groove Cutting Machine for Signage Lettering
Tool holder self-lubricating system
The tool holder of the equipment is equipped with self-lubricating system, which can move up and down at the same time and self-lubricate the tool holder, greatly reducing the internal losses of the tool holder and improving the service life of the tool holder.

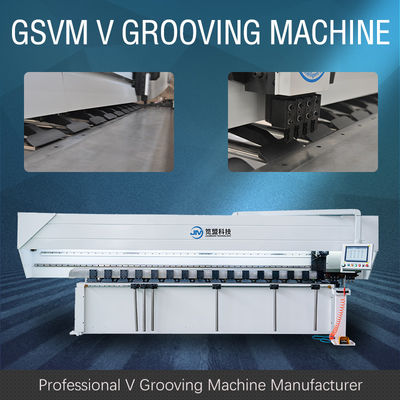

GSVM vertical high-speed v grooving machine is a professional v grooving equipment, which is applicable to all metal plates, such as stainless steel plates, copper plates, aluminum plates, galvanized plates and so on. The v grooving is an auxiliary process of sheet bending forming. At the bending line where the sheet needs to be bent and formed, special cutters are used to cut V-shaped grooves, so that the material is easy to be bent and formed, and the R outside the bending angle can be minimized, and then bent and formed with a bending machine or manually, The processing is completed by this method and meets the product appearance requirements. The depth, width and angle of the V-shaped groove can be ensured by the feed rate and the shape of the cutting tools during machining.
| No. | Name | Parameter | Unit | |
| 1 | Max. Width of metal sheet | 1500 | mm | |
| 2 | Max. Length of metal sheet | 4000 | mm | |
| 3 | Max. thickness(Stainless steel) | 6 | mm | |
| 4 | Min. Thickness of metal sheet | 0.4 | mm | |
| 5 | Min.distance of the V from edge | 10 | mm | |
| 6 | Max. cutting speed of X axis | 120 | m/min | |
| 7 | Max .return speed of X axis | 120 | m/min | |
| 8 | Max.distance of Y axis | 1250 | mm | |
| 9 | Resolution in Y axis | 0.001 | mm | |
| 10 | Repeated positioning accuracy | ±0.01 | mm | |
| 11 | Resolution in z axis | 0.001 | mm | |
| 12 | Repeated positioning accuracy | ±0.01 | mm | |
| 13 | Motor power | X axis | 5.5 | kW |
| Y,Z axis | 1.0 | |||
| 14 | Overall dimension | Length | 5700 | mm |
| Width | 2600 | |||
| Height | 2000 | |||
