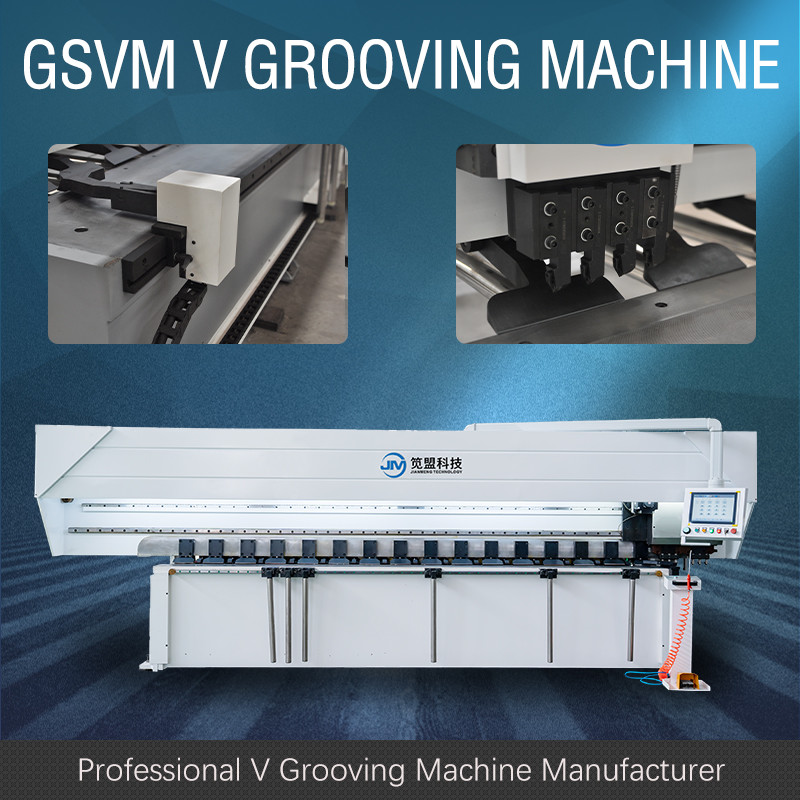

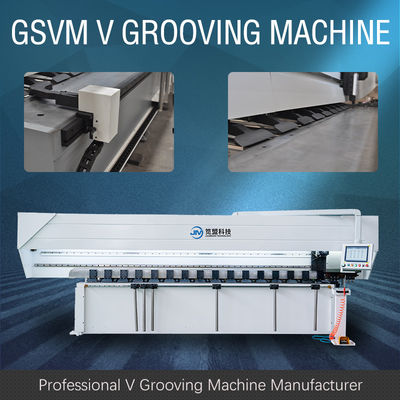

Heavy Duty V Groove Cutter Machine Elevator Wall Panels V Groover Machine

1 set
MOQ
Negotiate
Price
Heavy Duty V Groove Cutter Machine Elevator Wall Panels V Groover Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Colour: Blue And White; Customizable
Presser Foot Power: Hydraulic
Input Voltage: 380V; Customizable
Machinable Length: 4000mm;Customizable
Machinable Width: 1500mm;Customizable
Temper Or Not: Yes
Highlight:

Heavy Duty V Groove Cutter Machine

,

V Groove Cutter Machine 4000mm

,

Elevator Wall Panels V Groover Machine
Basic Infomation
Place of Origin: Wuxi,China
Brand Name: JM
Certification: ISO9001,CE
Model Number: GSVM
Payment & Shipping Terms
Packaging Details: Waterproof packaging
Delivery Time: 10-30days
Payment Terms: T/T
Supply Ability: 30 sets per mouth
Product Description

Heavy-duty Vertical V Groove Cutting Machine for Elevator Wall Panels



Spare parts Service
The equipment and units in SUBIERUI have a long service life. The original parts can be found in our spare parts warehouse regardless of the year the equipment was shipped. Our technical service personnel are familiar with all manufacturers' equipment, from the initial assembly of new equipment to the selection of spare parts, and can provide you with professional assistance, even from other manufacturers..



The base (a) and crossbeam (c) of GSHM v grooving machine are designed with frame structure, and the worktable is made of low-alloy high-strength structural steel. The machine tool is rigid and durable as a whole. The machine tool processing process shall be strictly followed, and electric furnace tempering shall be adopted to eliminate welding stress and reduce equipment deformation. Ensure excellent painting effect through sand blasting. The frame is formed by the imported CNC stereo machining center through one-time clamping processing, ensuring the parallelism and perpendicularity of each mounting surface.

Tool holder self-lubricating system
The tool holder of the equipment is equipped with self-lubricating system, which can move up and down at the same time and self-lubricate the tool holder, greatly reducing the internal losses of the tool holder and improving the service life of the tool holder.

No. Name Parameter Unit
1 Max. Width of metal sheet 1500 mm
2 Max. Length of metal sheet 4000 mm
3 Max. thickness(Stainless steel) 6 mm
4 Min. Thickness of metal sheet 0.4 mm
5 Min.distance of the V from edge 10 mm
6 Max. cutting speed of X axis 120 m/min
7 Max .return speed of X axis 120 m/min
8 Max.distance of  Y axis 1250 mm
9 Resolution in Y axis 0.001 mm
10 Repeated positioning accuracy ±0.01 mm
11 Resolution in z axis 0.001 mm
12 Repeated positioning accuracy ±0.01 mm
13 Motor power X axis 5.5 kW
Y,Z axis 1.0
14 Overall dimension Length 5700 mm
Width 2600
Height 2000



Heavy Duty V Groove Cutter Machine Elevator Wall Panels V Groover Machine 0
