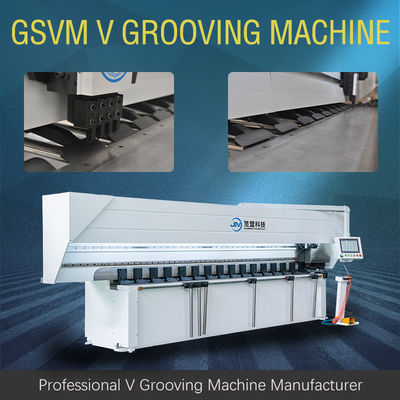

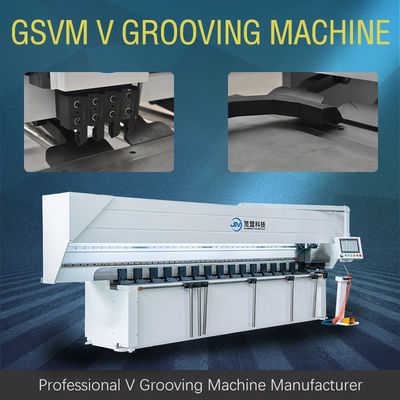

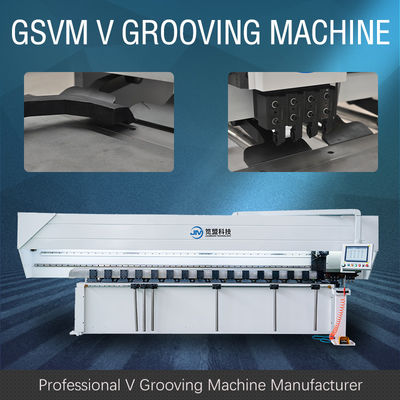

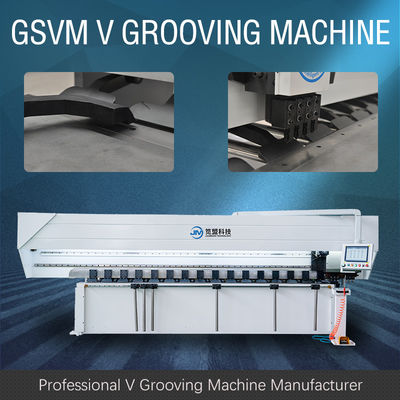

CE V Groove Cutting Machine Metal Curtain Wall Panel Horizontal V Cutting Machine

1 set
MOQ
Negotiate
Price
CE V Groove Cutting Machine Metal Curtain Wall Panel Horizontal V Cutting Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Colour: Blue And White; Customizable
Presser Foot Power: Hydraulic
Input Voltage: 380V; Customizable
Machinable Length: 4000mm;Customizable
Machinable Width: 1500mm;Customizable
Number Of Cutterbars: 4 Pcs
High Light:

CE V Groove Cutting Machine 380V

,

V Groove Cutting Machine Metal Curtain Wall Panel

,

Horizontal V Cutting Machine 1500mm

Basic Infomation
Place of Origin: Wuxi,China
Brand Name: JM
Certification: ISO9001,CE
Model Number: GSVM
Payment & Shipping Terms
Packaging Details: Waterproof packaging
Delivery Time: 10-30days
Payment Terms: T/T
Supply Ability: 30 sets per mouth
Product Description

Hydraulic V Groove Cutting Machine for Metal Curtain Wall Panel



Mirror like groove surface
The lengthened heavy slider guide rail group, combined with the more than ten years of experience of the assembly master, realizes the ultra stable grooving of the tool rest on the board surface. As a result, SUBIERUI v grooving machine can obtain a very high quality groove surface - the groove surface is as smooth as a mirror.



Multiple auxiliary presser feet
The number of auxiliary presser feet is large and the distribution is scientific. Multiple auxiliary presser feet in two directions are hydraulically controlled, and the workpiece clamping is more stable and reliable.

Automatic Cycle Programming
The system can automatically cycle the workpiece according to the amount of cycle input without input one by one, which greatly reduces programming time and improves productivity.


No. Name Parameter Unit
1 Max. Width of metal sheet 1500 mm
2 Max. Length of metal sheet 4000 mm
3 Max. thickness(Stainless steel) 6 mm
4 Min. Thickness of metal sheet 0.4 mm
5 Min.distance of the V from edge 10 mm
6 Max. cutting speed of X axis 120 m/min
7 Max .return speed of X axis 120 m/min
8 Max.distance of  Y axis 1250 mm
9 Resolution in Y axis 0.001 mm
10 Repeated positioning accuracy ±0.01 mm
11 Resolution in z axis 0.001 mm
12 Repeated positioning accuracy ±0.01 mm
13 Motor power X axis 5.5 kW
Y,Z axis 1.0
14 Overall dimension Length 5700 mm
Width 2600
Height 2000



CE V Groove Cutting Machine Metal Curtain Wall Panel Horizontal V Cutting Machine 0
