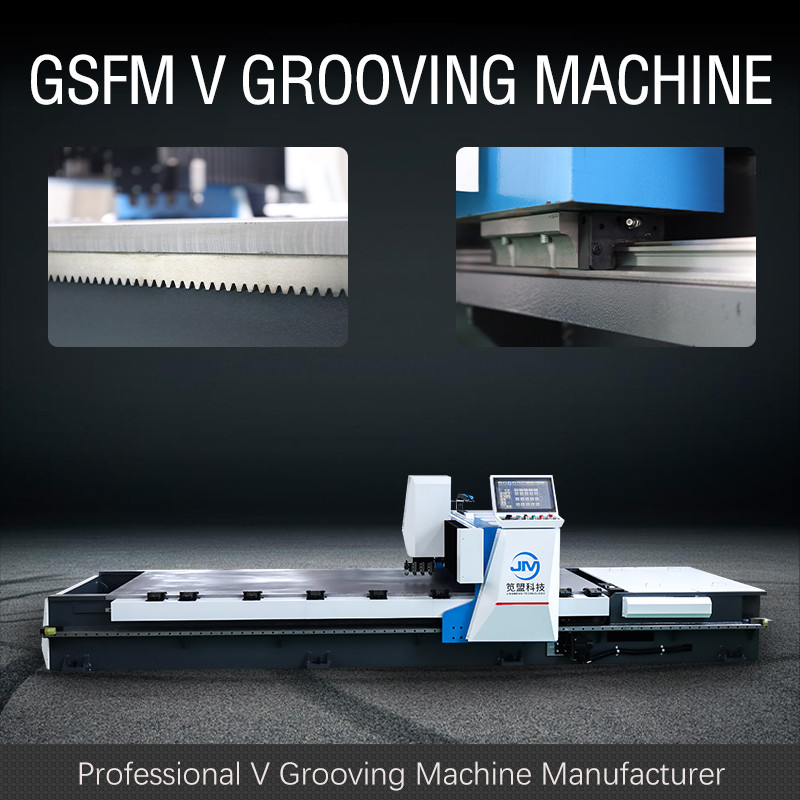

Advanced Fully Automatic Four Sided V Slotting Machine for Door Industry Precision
The tool holder (b) of GSFM v grooving machine is equipped with three alloy cutters to process the V-shape groove, so the cutting amount is evenly distributed to reduce the deformation of the machined parts. The micro cooling system can be selected to prolong the service life of the tool and reduce the production cost; The universal tool clamping mounting surface can meet the clamping requirements of various tools. The white steel tool and alloy tool are interchangeable; The tool carrier transfer device uses grinding grade ball screw and heavy-duty linear guide rail, so it has high accuracy.
Keep all functions of the standard model
Automatic calculation of internal and external diameters, automatic cycle programming, visual picture editing, bending effect display, tool holder self-lubricating system, intermittent working hydraulic station, etc.
One-time forming of workpiece
The workpiece no longer needs to be shifted manually, which greatly improves the dimensional accuracy, saves labor costs, saves time costs and improves production efficiency.
| No. | Name | Parameter | Unit | |
| 1 | Max. Width of metal sheet | 1500 | mm | |
| 2 | Max. Length of metal sheet | 4000 | mm | |
| 3 | Max. thickness(Stainless steel) | 5 | mm | |
| 4 | Min. Thickness of metal sheet | 0.4 | mm | |
| 5 | Min.distance of the V from edge | 12 | mm | |
| 6 | Max. cutting speed of X axis | 120 | m/min | |
| 7 | Max .return speed of X axis | 120 | m/min | |
| 8 | Max.distance of Y axis | 1250 | mm | |
| 9 | Resolution in Y axis | 0.001 | mm | |
| 10 | Repeated positioning accuracy | ±0.01 | mm | |
| 11 | Resolution in z axis | 0.001 | mm | |
| 12 | Repeated positioning accuracy | ±0.01 | mm | |
| 13 | Motor power | X axis | 5.5 | kW |
| U | 3.0 | |||
| Y1,Y2,Z axis | 1.0 | |||
| 14 | Overall dimension | Length | 5980 | mm |
| Width | 2420 | |||
| Height | 1600 | |||
