High Precision V Slotting Machine Cupboard Cabinet Door Making Machine 1240

1 set
MOQ
Negotiate
Price
High Precision V Slotting Machine Cupboard Cabinet Door Making Machine 1240
Features Gallery Product Description Request A Quote
Features
Specifications
Colour: Blue And White; Customizable
Temper Or Not: Yes
Input Voltage: 220-415V
Cutterbar Properties: Alloy Blades Or White Steel Blades
Processing Speed: 120m/min
Controller Position: On The Gantry; Customizable To Separate
High Light:

High Precision V Slotting Machine

,

415V V Slotting Machine Cupboard 1240

,

Cabinet Door Making Machine 1240

Basic Infomation
Place of Origin: Wuxi,China
Brand Name: SUBIERUI
Certification: ISO9001,CE
Model Number: GSHM
Payment & Shipping Terms
Packaging Details: Waterproof packaging
Delivery Time: 10-30days
Payment Terms: T/T
Supply Ability: 30 sets per mouth
Product Description

High-Precision V Slotting Machine for Cupboard Door Making - Model 1240



Customization and modification of equipment
Consulting for new equipment is not the only solution when there is a need to adjust process flow, change materials or improve the utilization of existing capacity in production. Our engineers can work with you to analyze and assess the current situation of your equipment, and combine your needs and desires to develop a complete set of solutions for you, from small-scale equipment customization to equipment modification. We will work with you to develop personalized maintenance schemes for all projects according to your technical needs so as to avoid costly out-of-chapter downtime, ensure the service life of equipment and improve the value of equipment itself. Take advantage of these strengths to maximize process and investment safety. Of course, equipment manufactured by other manufacturers is no exception.

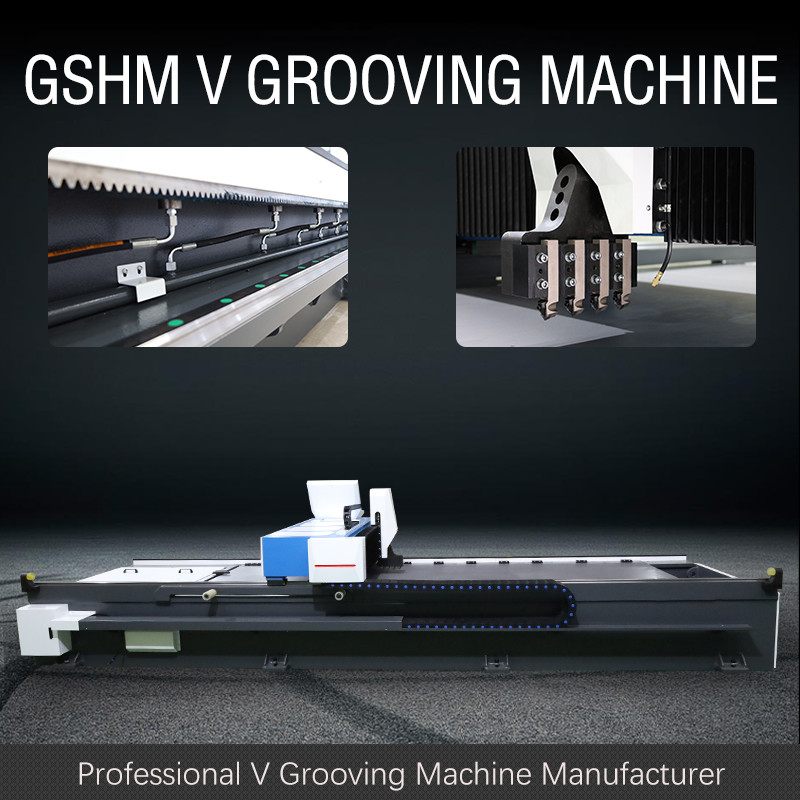

The crossbeam of GSHM v grooving machine is driven by high-precision helical rack and guide rail with grinding helical gear. The moving speed can be adjusted by frequency conversion. The dual guide rail structure makes the crossbeam chip feeding process stable and efficient.

Automatic calculation of inner and outer diameters
The system can automatically calculate the slot distance according to the input size and the selected inner or outer diameter function. Reduce operation difficulty and labor cost.

No. Name Parameter Unit
1 Max. Width of metal sheet 1250 mm
2 Max. Length of metal sheet 4000 mm
3 Max. thickness(Stainless steel) 5 mm
4 Min. Thickness of metal sheet 0.4 mm
5 Min.distance of the V from edge 8 mm
6 Max. cutting speed of X axis 120 m/min
7 Max .return speed of the X axis 120 m/min
8 Max.distance of Y axis 1250 mm
9 Resolution in Y1 axis 0.001 mm
10 Repeated positioning accuracy ±0.01 mm
11 Resolution in z axis 0.001 mm
12 Repeated positioning accuracy ±0.01 mm
13 Motor power X axis 5.5 kW
Y1.Y2.Z axis 1.0
14 Overall dimension Length 5900 mm
Width 2000
Height 1550

High Precision V Slotting Machine Cupboard Cabinet Door Making Machine 1240 0
