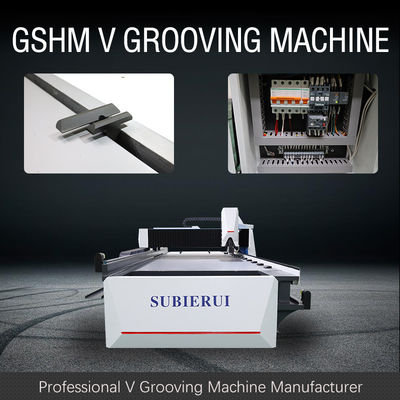

Signage CNC V Cutting Machine Hydraulic Automatic V Grooving Machine 1240

1 set
MOQ
Negotiate
Price
Signage CNC V Cutting Machine Hydraulic Automatic V Grooving Machine 1240
Features Gallery Product Description Request A Quote
Features
Specifications
Colour: Blue And White; Customizable
Controller: Touch Screen
Temper Or Not: Yes
Hydraulic Or Yenot: Yes
Number Of Cutterbars: 4 Pcs
Controller Position: On The Gantry; Customizable To Separate
High Light:

Signage CNC V Cutting Machine

,

CNC V Cutting Machine Hydraulic 240

,

Automatic V Grooving Machine 1240

Basic Infomation
Place of Origin: China
Brand Name: SUBIERUI
Certification: ISO9001 CE
Model Number: GSHM
Payment & Shipping Terms
Packaging Details: Waterproof packaging
Delivery Time: 25-45days
Payment Terms: T/T
Supply Ability: 10 sets per mouth
Product Description
CNC V Slotting Machine for Signage Production with Hydraulic Drive - Model 1240

Our services
Today, many enterprises must survive in international competition, and production costs will increase due to obsolete equipment, unexpected downtime, capacity problems or under-trained employees.
The company has excellent equipment and after-sales service. From project planning and start-up to production tracking and operation training, to equipment maintenance, spare parts supply and maintenance, we will provide you with a full range of services.

Customer Service and Maintenance
The shutdown of machine tools and equipment has caused a high cost to the enterprise, so SUBIERUI is doing its best to solve the problem quickly. We offer a 24/7 global service that gives you immediate access to trained technicians. Even with regard to the difficult bending technology, we can help you out. We have a dedicated service team and an efficient logistic system to provide suitable spare parts and fast access to the field in a short time, and equipment maintenance is not limited to our own equipment, nor is the equipment from other manufacturers.

Customization and modification of equipment
Consulting for new equipment is not the only solution when there is a need to adjust process flow, change materials or improve the utilization of existing capacity in production. Our engineers can work with you to analyze and assess the current situation of your equipment, and combine your needs and desires to develop a complete set of solutions for you, from small-scale equipment customization to equipment modification. We will work with you to develop personalized maintenance schemes for all projects according to your technical needs so as to avoid costly out-of-chapter downtime, ensure the service life of equipment and improve the value of equipment itself. Take advantage of these strengths to maximize process and investment safety. Of course, equipment manufactured by other manufacturers is no exception.

No. Name Parameter Unit
1 Max. Width of metal sheet 1250 mm
2 Max. Length of metal sheet 4000 mm
3 Max. thickness(Stainless steel) 5 mm
4 Min. Thickness of metal sheet 0.4 mm
5 Min.distance of the V from edge 8 mm
6 Max. cutting speed of X axis 120 m/min
7 Max .return speed of the X axis 120 m/min
8 Max.distance of Y axis 1250 mm
9 Resolution in Y1 axis 0.001 mm
10 Repeated positioning accuracy ±0.01 mm
11 Resolution in z axis 0.001 mm
12 Repeated positioning accuracy ±0.01 mm
13 Motor power X axis 5.5 kW
Y1.Y2.Z axis 1.0
14 Overall dimension Length 5900 mm
Width 2000
Height 1550

Signage CNC V Cutting Machine Hydraulic Automatic V Grooving Machine 1240 0
