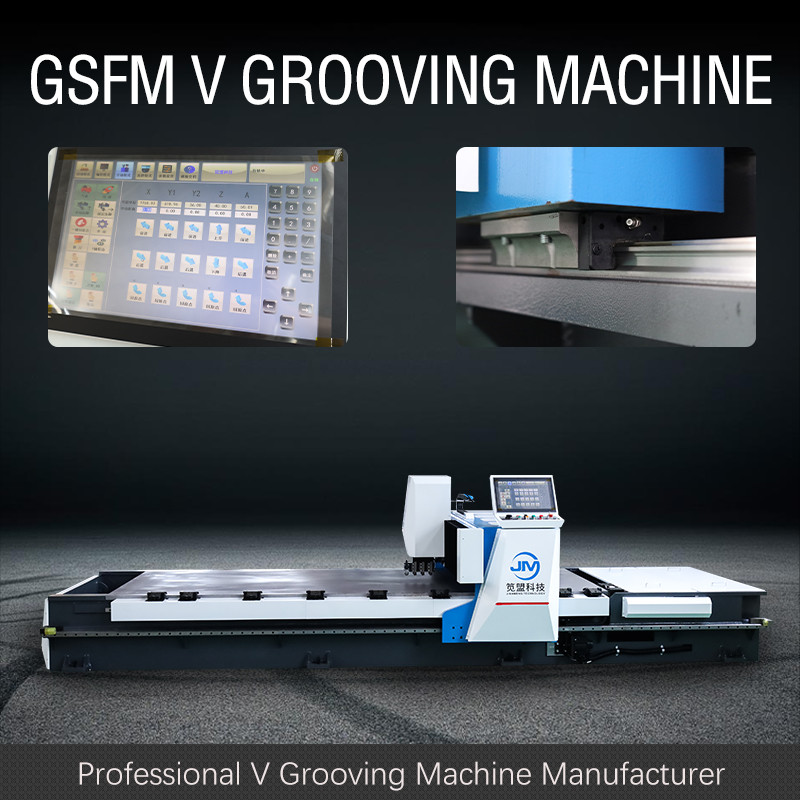

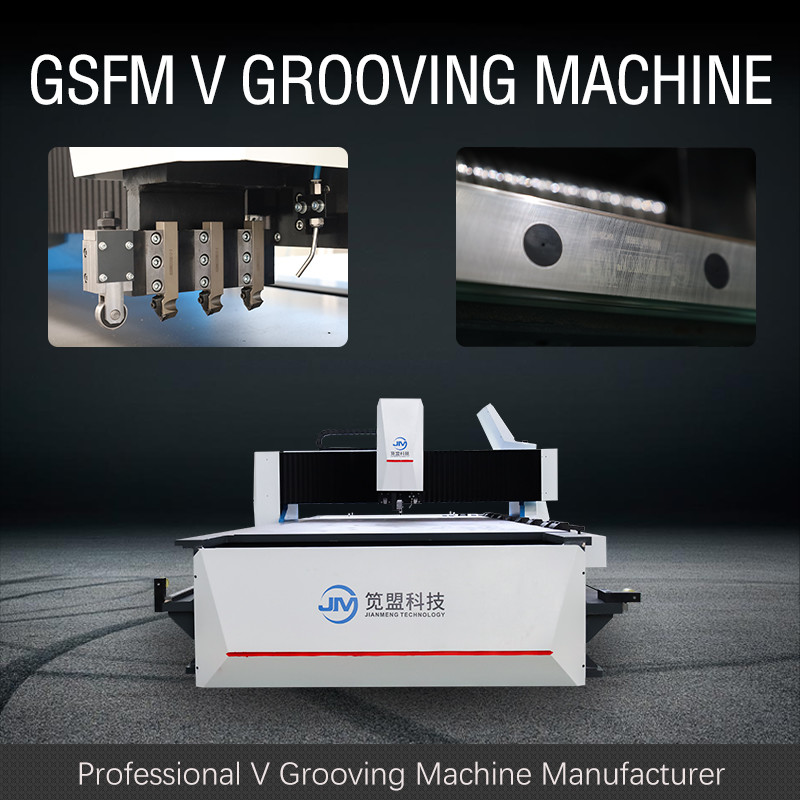

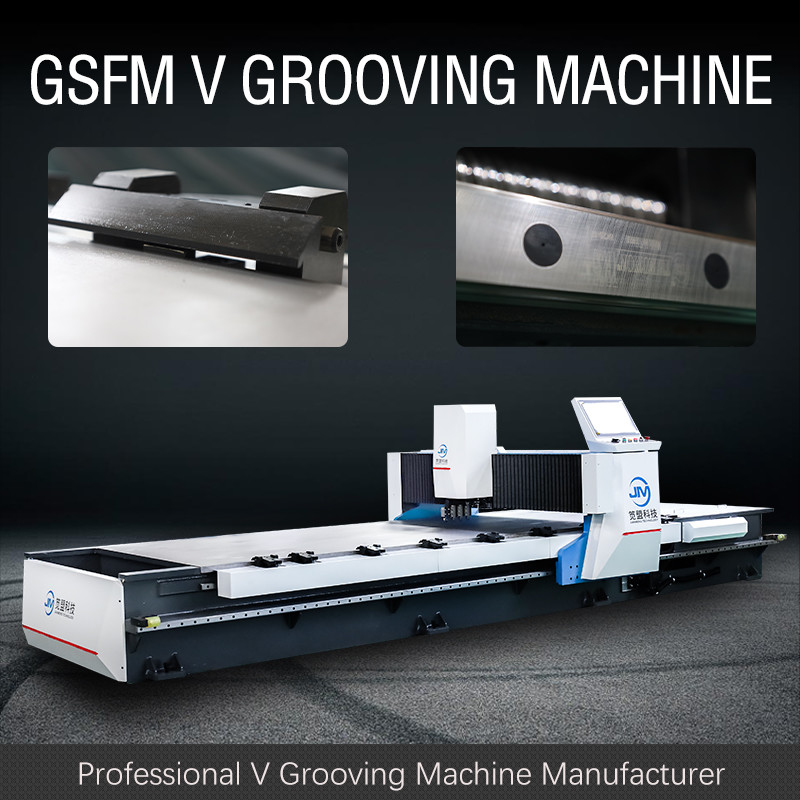

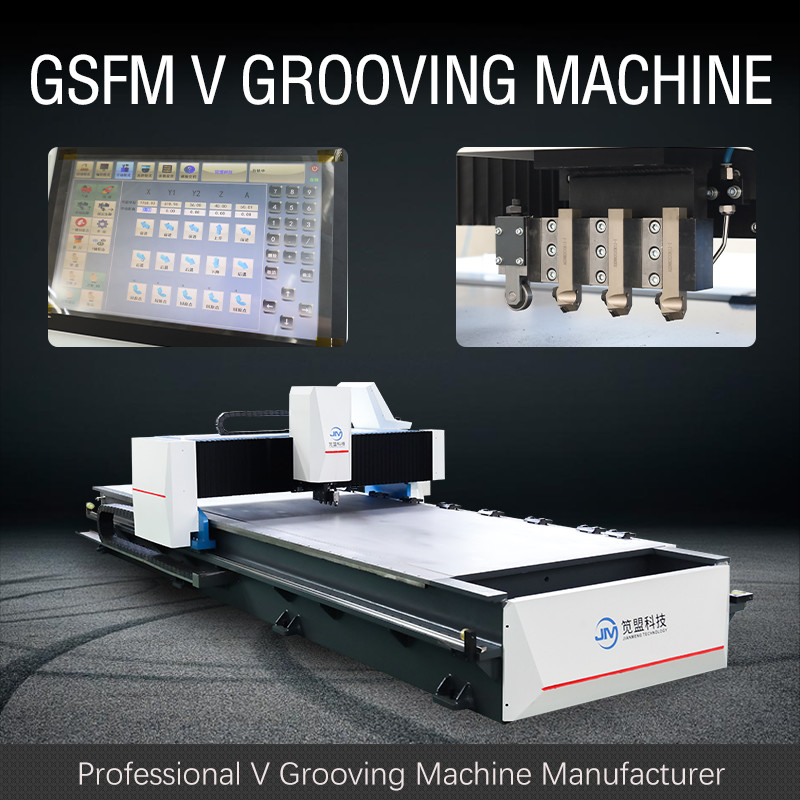

Efficient Fully Automatic Four Sided V Grooving Machine for Door Industry Use
The materials to be processed by GSFM v grooving machine are fixed by hydraulic clamping system, and flexible clamping and unloading devices are used: high-precision guidance system, position measurement system and hydraulic balancing function, to meet the needs of processing board surface free of trauma as far as possible. The hydraulic pressure is adjustable and reliable. The hydraulic system is equipped with an accumulator for compensation. The motor works in a clearance manner to save energy and control oil temperature.
Keep all functions of the standard model
Automatic calculation of internal and external diameters, automatic cycle programming, visual picture editing, bending effect display, tool holder self-lubricating system, intermittent working hydraulic station, etc.
One-time forming of workpiece
The workpiece no longer needs to be shifted manually, which greatly improves the dimensional accuracy, saves labor costs, saves time costs and improves production efficiency.
| No. | Name | Parameter | Unit | |
| 1 | Max. Width of metal sheet | 1500 | mm | |
| 2 | Max. Length of metal sheet | 4000 | mm | |
| 3 | Max. thickness(Stainless steel) | 5 | mm | |
| 4 | Min. Thickness of metal sheet | 0.4 | mm | |
| 5 | Min.distance of the V from edge | 12 | mm | |
| 6 | Max. cutting speed of X axis | 120 | m/min | |
| 7 | Max .return speed of X axis | 120 | m/min | |
| 8 | Max.distance of Y axis | 1250 | mm | |
| 9 | Resolution in Y axis | 0.001 | mm | |
| 10 | Repeated positioning accuracy | ±0.01 | mm | |
| 11 | Resolution in z axis | 0.001 | mm | |
| 12 | Repeated positioning accuracy | ±0.01 | mm | |
| 13 | Motor power | X axis | 5.5 | kW |
| U | 3.0 | |||
| Y1,Y2,Z axis | 1.0 | |||
| 14 | Overall dimension | Length | 5980 | mm |
| Width | 2420 | |||
| Height | 1600 | |||
