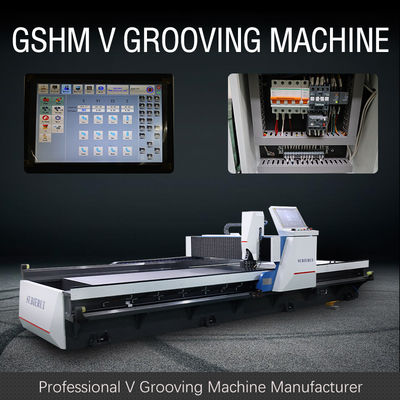

CNC V Grooving Machine for Home Decoration and Metal Furniture Manufacturing - Model 1232
Professional team
SUBIERUI not only has excellent equipment, but also can provide considerate after-sales service. From the planning and starting of the project, to the production tracking and operation training, to the equipment maintenance, the supply and maintenance of spare parts, we can provide you with a full range of services.
| No. | Name | Parameter | Unit | |
| 1 | Max. Width of metal sheet | 1250 | mm | |
| 2 | Max. Length of metal sheet | 3200 | mm | |
| 3 | Max. thickness(Stainless steel) | 5 | mm | |
| 4 | Min. Thickness of metal sheet | 0.4 | mm | |
| 5 | Min.distance of the V from edge | 8 | mm | |
| 6 | Max. cutting speed of X axis | 120 | m/min | |
| 7 | Max .return speed of the X axis | 120 | m/min | |
| 8 | Max.distance of Y axis | 1250 | mm | |
| 9 | Resolution in Y1 axis | 0.001 | mm | |
| 10 | Repeated positioning accuracy | ±0.01 | mm | |
| 11 | Resolution in z axis | 0.001 | mm | |
| 12 | Repeated positioning accuracy | ±0.01 | mm | |
| 13 | Motor power | X axis | 5.5 | kW |
| Y1.Y2.Z axis | 1.0 | |||
| 14 | Overall dimension | Length | 5100 | mm |
| Width | 2000 | |||
| Height | 1550 | |||
