Metal Curtain Wall CNC V Cutting Machine Signage Sheet Metal Grooving Machine 1532

1 set
MOQ
Negotiation
Price
Metal Curtain Wall CNC V Cutting Machine Signage Sheet Metal Grooving Machine 1532
Features Gallery Product Description Request A Quote
Features
Specifications
Colour: Blue And White; Customizable
Presser Foot Power: Hydraulic
Total Power: 10.5kW
Machinable Length: 3200mm
Machinable Width: 1500mm
Processing Speed: 120m/min
High Light:

CNC V Cutting Machine 1532

,

Metal Curtain Wall CNC V Cutting Machine

,

Sheet Metal Grooving Machine v 1532

Basic Infomation
Place of Origin: Wuxi,China
Brand Name: SUBIERUI
Certification: ISO9001,CE
Model Number: GSHM 12532
Payment & Shipping Terms
Packaging Details: Waterproof packaging
Delivery Time: 7-25 days
Payment Terms: T/T
Supply Ability: 30sets per mouth
Product Description

Metal Curtain Wall and Signage CNC V Grooving Machine with Anti-Skateboard Design - Model 1532

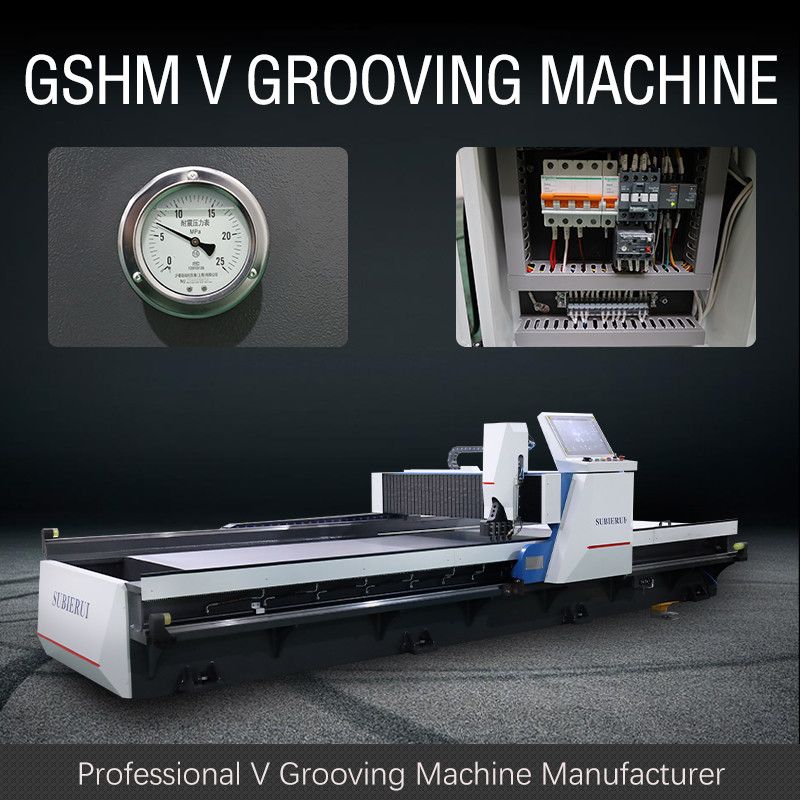

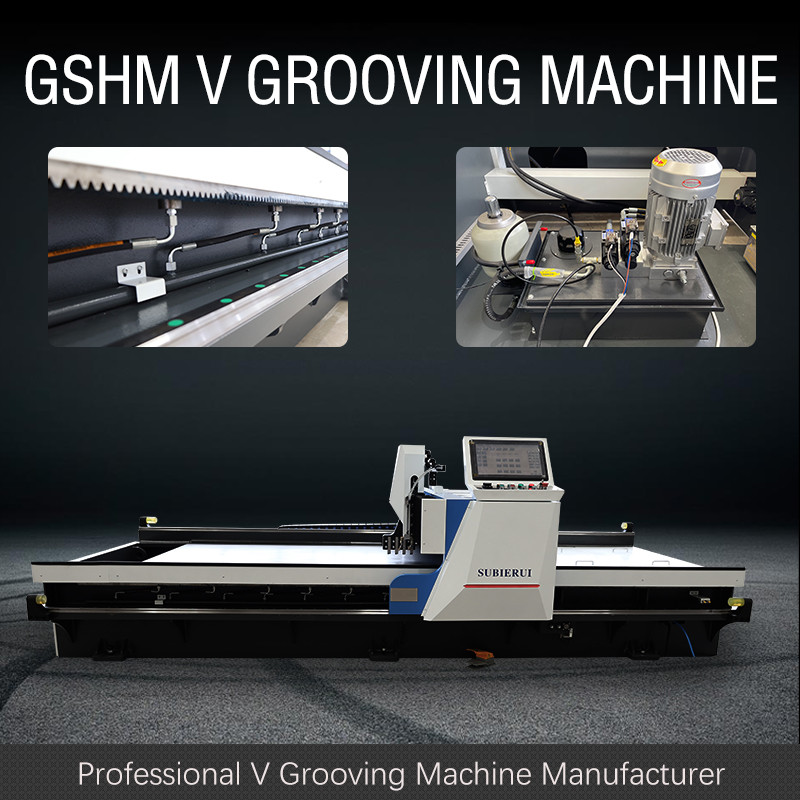

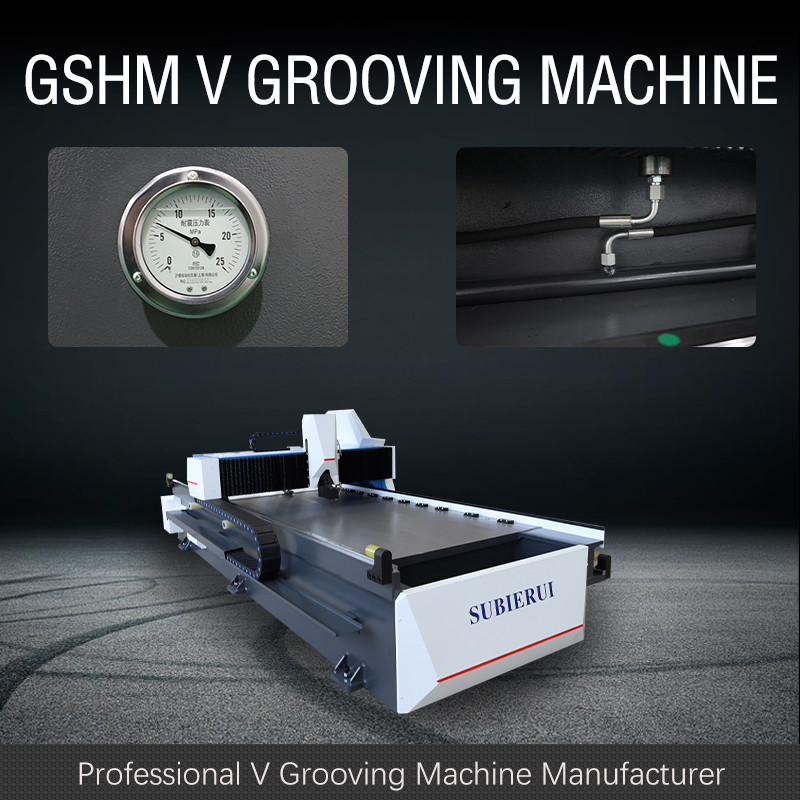

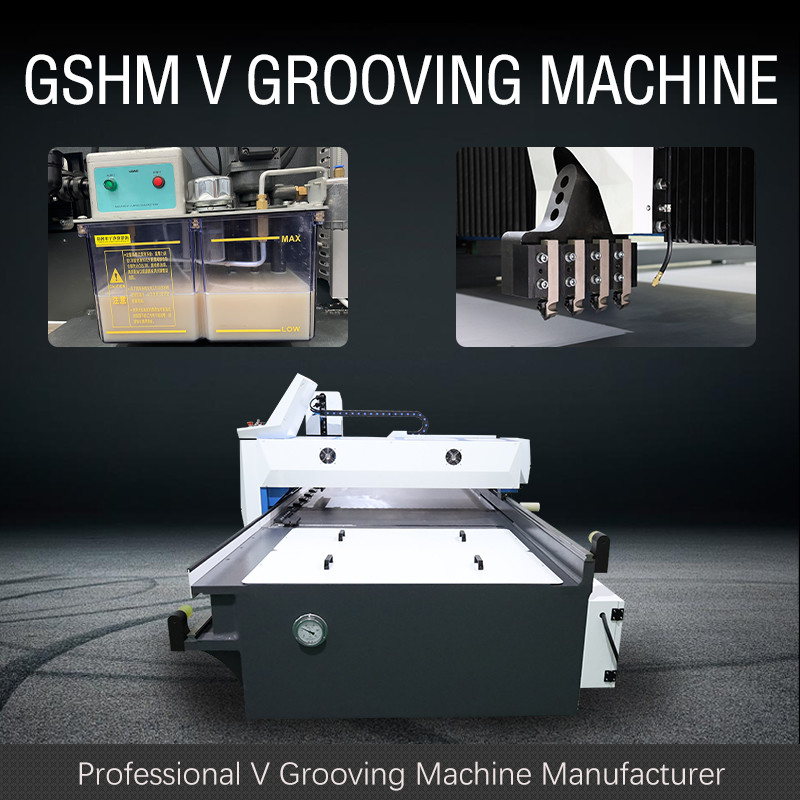

GSHM horizontal high-speed v grooving machine is a professional v grooving equipment, which is applicable to all metal plates, such as stainless steel plates, copper plates, aluminum plates, galvanized plates and so on. The v grooving is an auxiliary process of sheet bending forming. At the bending line where the sheet needs to be bent and formed, special cutters are used to cut V-shaped grooves, so that the material is easy to be bent and formed, and the R outside the bending angle can be minimized, and then bent and formed with a bending machine or manually, The processing is completed by this method and meets the product appearance requirements. The depth, width and angle of the V-shaped groove can be ensured by the feed rate and the shape of the cutting tools during machining.





Customer Service and Maintenance
The shutdown of machine tools and equipment has caused a high cost to the enterprise, so SUBIERUI is doing its best to solve the problem quickly. We offer a 24/7 global service that gives you immediate access to trained technicians. Even with regard to the difficult bending technology, we can help you out. We have a dedicated service team and an efficient logistic system to provide suitable spare parts and fast access to the field in a short time, and equipment maintenance is not limited to our own equipment, nor is the equipment from other manufacturers.

Simple and intelligent system
According to the entered inner diameter or outer diameter after bending, the system automatically calculates the slot distance when processing, and displays the two-dimensional sketch map after bending, capacity and required sheet width. Easy to operate, easy to learn and understand, reduce the demand for talents and reduce labor costs.

No. Name Parameter Unit
1 Max. Width of metal sheet 1500 mm
2 Max. Length of metal sheet 3200 mm
3 Max. thickness(Stainless steel) 5 mm
4 Min. Thickness of metal sheet 0.4 mm
5 Min.distance of the V from edge 8 mm
6 Max. cutting speed of X axis 120 m/min
7 Max .return speed of the X axis 120 m/min
8 Max.distance of Y axis 1250 mm
9 Resolution in Y1 axis 0.001 mm
10 Repeated positioning accuracy ±0.01 mm
11 Resolution in z axis 0.001 mm
12 Repeated positioning accuracy ±0.01 mm
13 Motor power X axis 5.5 kW
Y1.Y2.Z axis 1.0
14 Overall dimension Length 5100 mm
Width 2250
Height 1550



    Metal Curtain Wall CNC V Cutting Machine Signage Sheet Metal Grooving Machine 1532 0
