Automatic CNC V Grooving Machine Hydraulic V Groove Machine For Metal

1 set
MOQ
Negotiate
Price
Automatic CNC V Grooving Machine Hydraulic V Groove Machine For Metal
Features Gallery Product Description Request A Quote
Features
Specifications
Colour: Blue And White; Customizable
Cooling Action: Air Cooling; Customizable Water Cooling
Input Voltage: 380V; Customizable
Machinable Length: 3200mm;Customizable
Machinable Width: 1250mm;Customizable
Presser Foot Power: Hydraulic
High Light:

Automatic CNC V Grooving Machine 3200mm

,

CNC V Grooving Machine Hydraulic 3200mm

,

Hydraulic V Groove Machine For Metal

Basic Infomation
Place of Origin: Wuxi,China
Brand Name: JM
Certification: ISO9001,CE
Model Number: GSFM
Payment & Shipping Terms
Packaging Details: Waterproof packaging
Delivery Time: 10-30days
Payment Terms: T/T
Supply Ability: 30 sets per mouth
Product Description

CNC Sheet Metal Cutting Machine With Laser Guided Accuracy For Display Prop Manufacturers



Intermittent Working Hydraulic Station
Avoid high oil temperature and motor temperature caused by long working time of oil pump, save energy and power, and prevent early aging of oil pipe and sealing ring.



The materials to be processed by GSFM v grooving machine are fixed by hydraulic clamping system, and flexible clamping and unloading devices are used: high-precision guidance system, position measurement system and hydraulic balancing function, to meet the needs of processing board surface free of trauma as far as possible. The hydraulic pressure is adjustable and reliable. The hydraulic system is equipped with an accumulator for compensation. The motor works in a clearance manner to save energy and control oil temperature.

Automatic calculation of inner and outer diameters
The system can automatically calculate the slot distance according to the input size and the selected inner or outer diameter function. Reduce operation difficulty and labor cost.


No. Name Parameter Unit
1 Max. Width of metal sheet 1250 mm
2 Max. Length of metal sheet 3200 mm
3 Max. thickness(Stainless steel) 5 mm
4 Min. Thickness of metal sheet 0.4 mm
5 Min.distance of the V from edge 8 mm
6 Max. cutting speed of X axis 120 m/min
7 Max .return speed of X axis 120 m/min
8 Max.distance of  Y axis 1250 mm
9 Resolution in Y axis 0.001 mm
10 Repeated positioning accuracy ±0.01 mm
11 Resolution in z axis 0.001 mm
12 Repeated positioning accuracy ±0.01 mm
13 Motor power X axis 5.0 kW
U 3.0
Y1,Y2,Z axis 1.0
14 Overall dimension Length 5100 mm
Width 2100
Height 1550

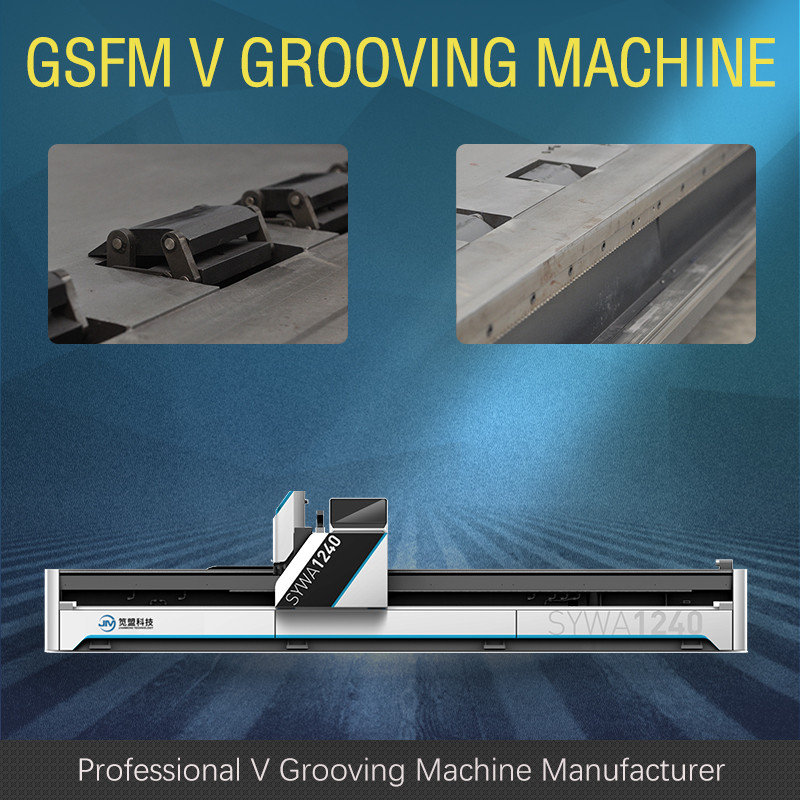

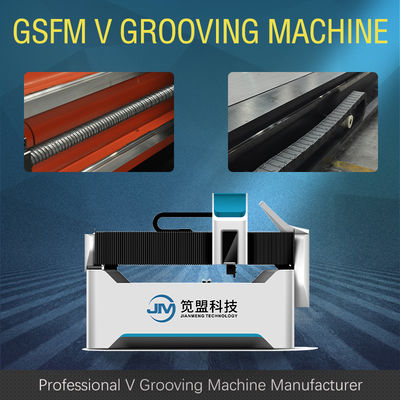

Automatic CNC V Grooving Machine Hydraulic V Groove Machine For Metal 0Automatic CNC V Grooving Machine Hydraulic V Groove Machine For Metal 1
