Versatile Metal Cutting Machine 1550 V Grooving Machine Manufacturers

1 set
MOQ
Negotiate
Price
Versatile Metal Cutting Machine 1550 V Grooving Machine Manufacturers
Features Gallery Product Description Request A Quote
Features
Specifications
Colour: Blue And White; Customizable
Controller: Touch Screen
Input Voltage: 380V; Customizable
Machinable Length: 5000mm;Customizable
Machinable Width: 1500mm;Customizable
Presser Foot Power: Hydraulic
High Light:

Versatile Metal Cutting Machine 1550 V

,

V Grooving Machine Manufacturers ISO9001

,

1500mm Versatile Metal Cutting Machine

Basic Infomation
Place of Origin: Wuxi,China
Brand Name: JM
Certification: ISO9001,CE
Model Number: GSDM
Payment & Shipping Terms
Packaging Details: Waterproof packaging
Delivery Time: 10-30days
Payment Terms: T/T
Supply Ability: 30 sets per mouth
Product Description

Versatile CNC Sheet Metal Cutting Machine for Metal Furniture Manufacturers



Visual Image Editing
For complex graphics, especially when both sides of plate need to be processed, two-dimensional graphics can be drawn directly by hand, visually and intuitively programmed, and the operating threshold is lowered at the same time.

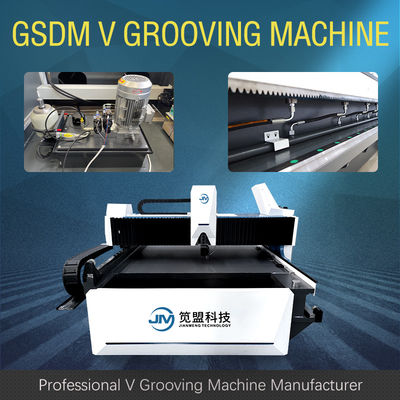

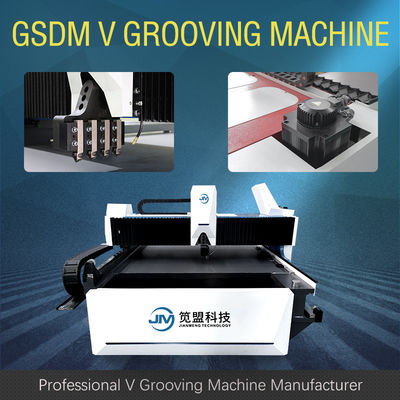

GSDM horizontal double-drive grooving v machine is a professional v grooving equipment, which is applicable to all metal plates, such as stainless steel plates, copper plates, aluminum plates, galvanized plates and so on. The v grooving is an auxiliary process of sheet bending forming. At the bending line where the sheet needs to be bent and formed, special cutters are used to cut V-shaped grooves, so that the material is easy to be bent and formed, and the R outside the bending angle can be minimized, and then bent and formed with a bending machine or manually, The processing is completed by this method and meets the product appearance requirements. The depth, width and angle of the V-shaped groove can be ensured by the feed rate and the shape of the cutting tools during machining.



The base (a) and crossbeam (c) of GSDM v grooving machine are designed with frame structure, and the worktable is made of low-alloy high-strength structural steel. The machine tool is rigid and durable as a whole. The machine tool processing process shall be strictly followed, and electric furnace tempering shall be adopted to eliminate welding stress and reduce equipment deformation. Ensure excellent painting effect through sand blasting. The frame is formed by the imported CNC stereo machining center through one-time clamping processing, ensuring the parallelism and perpendicularity of each mounting surface.

Double power
The equipment is jointly driven by two servo motors and two sets of gears and racks, with higher torque, faster speed and smoother operation.

No. Name Parameter Unit
1 Max. Width of metal sheet 1500 mm
2 Max. Length of metal sheet 5000 mm
3 Max. thickness(Stainless steel) 5 mm
4 Min. Thickness of metal sheet 0.4 mm
5 Min.distance of the V from edge 8 mm
6 Max. cutting speed of X axis 120 m/min
7 Max .return speed of X axis 120 m/min
8 Max.distance of  Y axis 1250 mm
9 Resolution in Y axis 0.001 mm
10 Repeated positioning accuracy ±0.01 mm
11 Resolution in z axis 0.001 mm
12 Repeated positioning accuracy ±0.01 mm
13 Motor power X1,X2 axis 5.0 kW
Y1,Y2,Z axis 1.0
14 Overall dimension Length 6900 mm
Width 2350
Height 1550





Versatile Metal Cutting Machine 1550 V Grooving Machine Manufacturers 0
