Heavy-Duty Hydraulic CNC Sheet Metal Cutting Machine for Elevator Component Fabrication

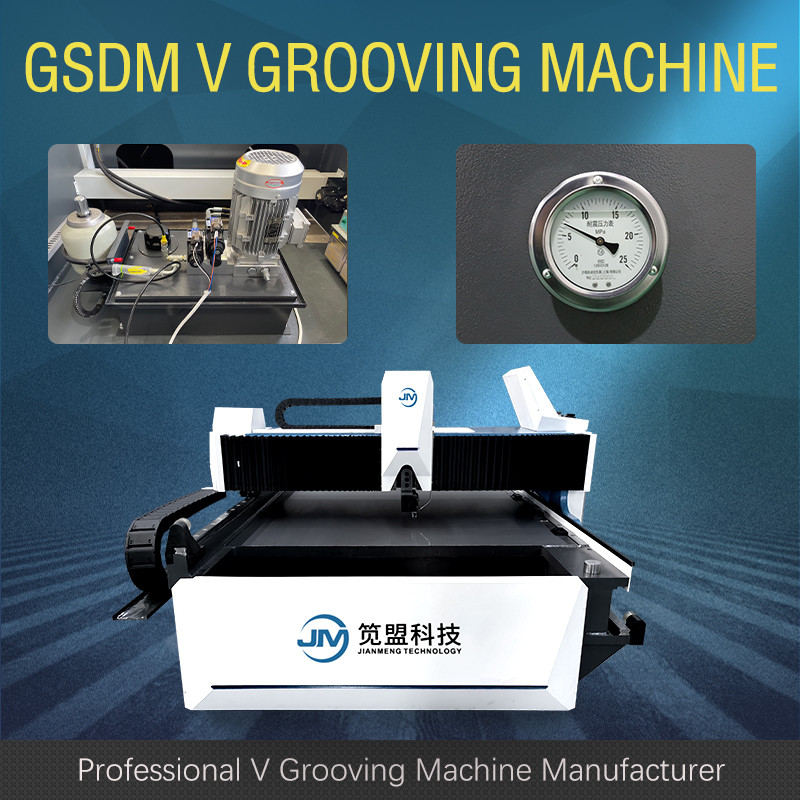

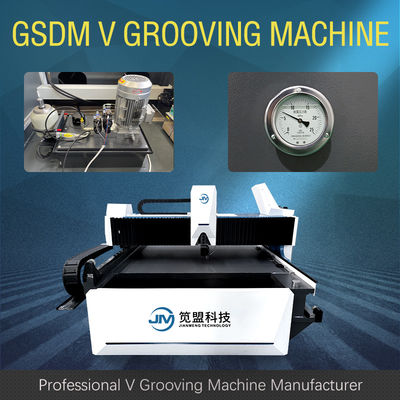

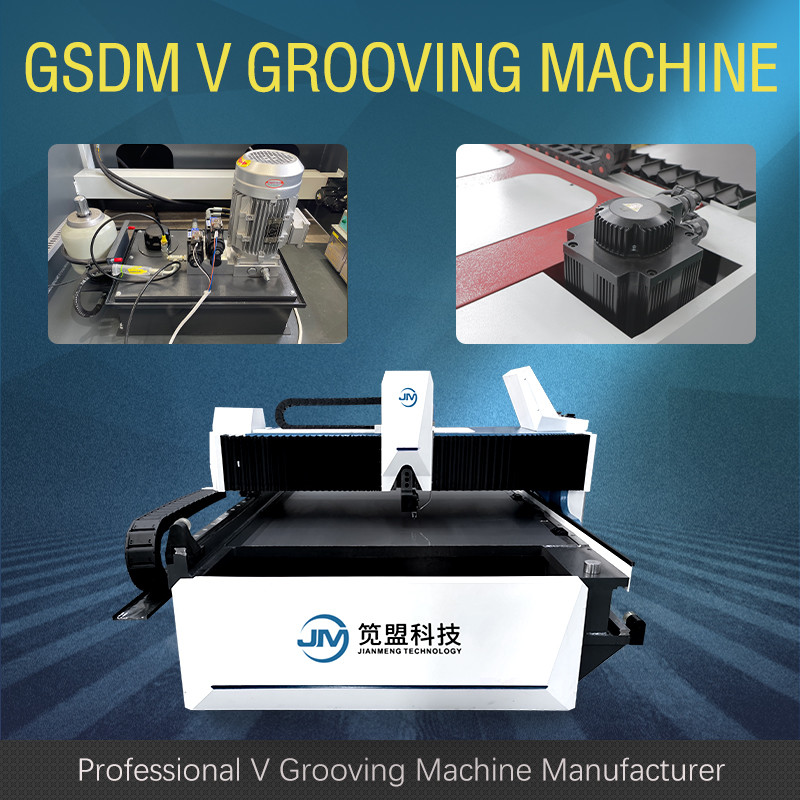

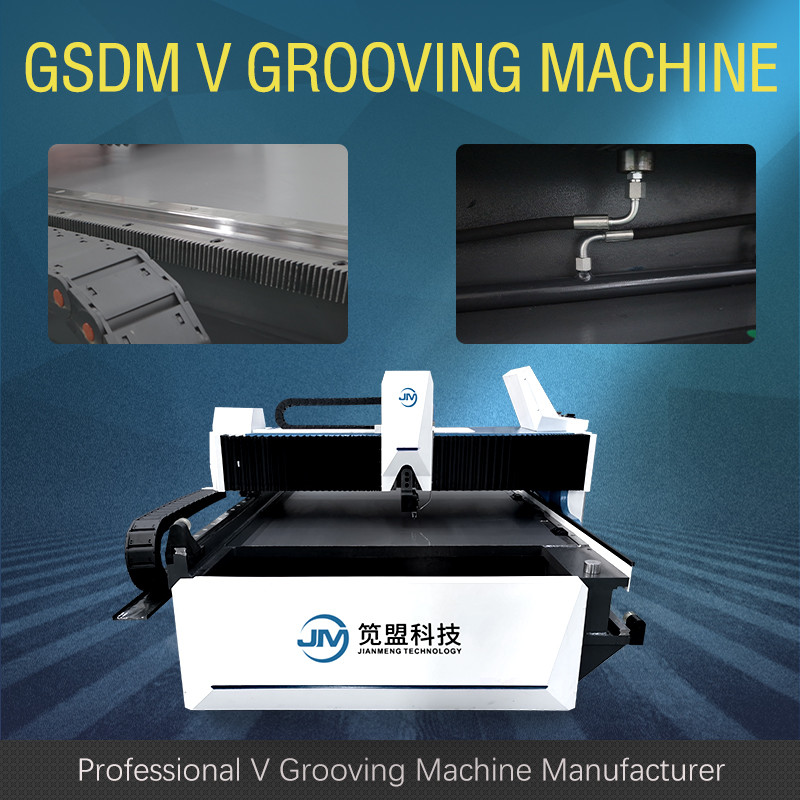

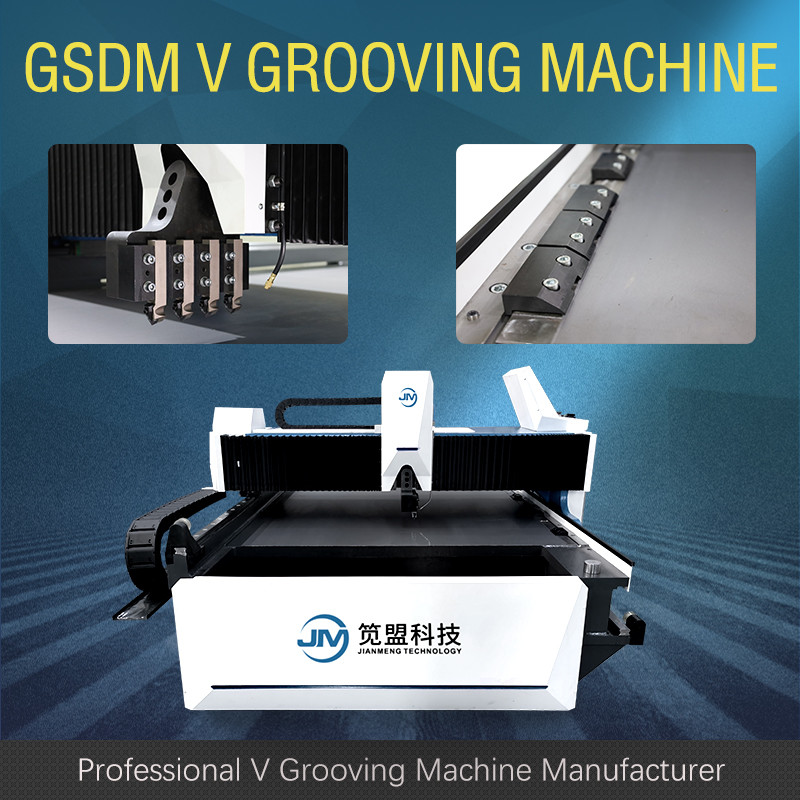

The crossbeam of GSDM v grooving machine is driven by two sets of grinding helical gears, high-precision helical rack and guide rail. The moving speed can be adjusted by frequency conversion. The double guide rail structure ensures that the beam type chip feeding process is stable and efficient.
| No. | Name | Parameter | Unit | |
| 1 | Max. Width of metal sheet | 1500 | mm | |
| 2 | Max. Length of metal sheet | 4000 | mm | |
| 3 | Max. thickness(Stainless steel) | 5 | mm | |
| 4 | Min. Thickness of metal sheet | 0.4 | mm | |
| 5 | Min.distance of the V from edge | 8 | mm | |
| 6 | Max. cutting speed of X axis | 120 | m/min | |
| 7 | Max .return speed of X axis | 120 | m/min | |
| 8 | Max.distance of Y axis | 1250 | mm | |
| 9 | Resolution in Y axis | 0.001 | mm | |
| 10 | Repeated positioning accuracy | ±0.01 | mm | |
| 11 | Resolution in z axis | 0.001 | mm | |
| 12 | Repeated positioning accuracy | ±0.01 | mm | |
| 13 | Motor power | X1,X2 axis | 5.0 | kW |
| Y1,Y2,Z axis | 1.0 | |||
| 14 | Overall dimension | Length | 5900 | mm |
| Width | 2350 | |||
| Height | 1550 | |||
