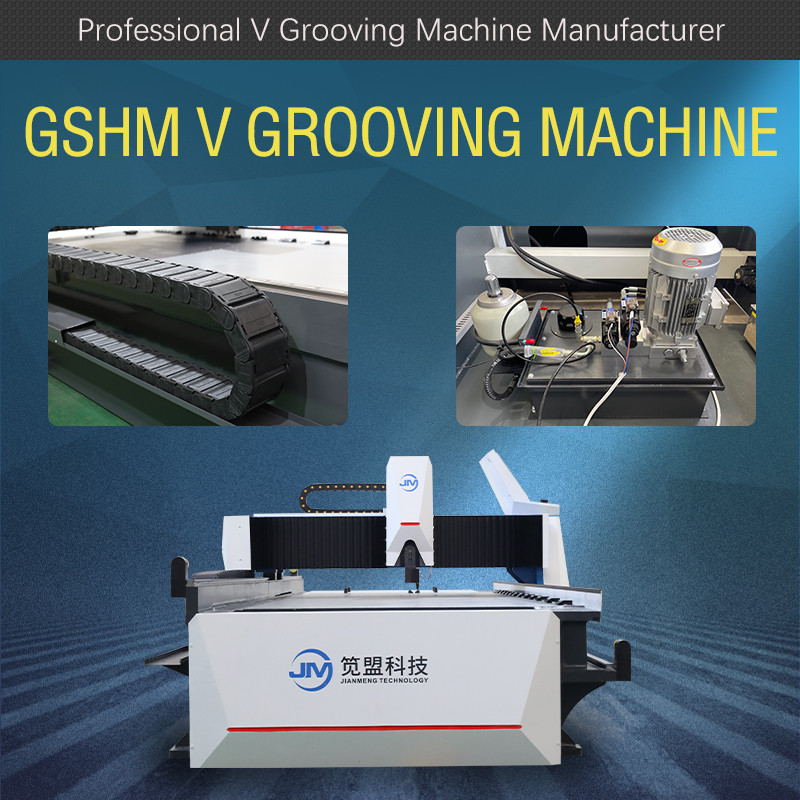

V Groove Cutter Machine for Ornament Metal Sheets with 1225mm x 2440mm Size
Mirror like groove surface
The lengthened heavy slider guide rail group, combined with the more than ten years of experience of the assembly master, realizes the ultra stable grooving of the tool rest on the board surface. As a result, SUBIERUI v grooving machine can obtain a very high quality groove surface - the groove surface is as smooth as a mirror.
| No. | Name | Parameter | Unit | |
| 1 | Max. Width of metal sheet | 1250 | mm | |
| 2 | Max. Length of metal sheet | 2500 | mm | |
| 3 | Max. thickness(Stainless steel) | 5 | mm | |
| 4 | Min. Thickness of metal sheet | 0.4 | mm | |
| 5 | Min.distance of the V from edge | 8 | mm | |
| 6 | Max. cutting speed of X axis | 120 | m/min | |
| 7 | Max .return speed of the X axis | 120 | m/min | |
| 8 | Max.distance of Y axis | 1250 | mm | |
| 9 | Resolution in Y1 axis | 0.001 | mm | |
| 10 | Repeated positioning accuracy | ±0.01 | mm | |
| 11 | Resolution in z axis | 0.001 | mm | |
| 12 | Repeated positioning accuracy | ±0.01 | mm | |
| 13 | Motor power | X axis | 5.5 | kW |
| Y1.Y2.Z axis | 1.0 | |||
| 14 | Overall dimension | Length | 4400 | mm |
| Width | 2000 | |||
| Height | 1550 | |||
