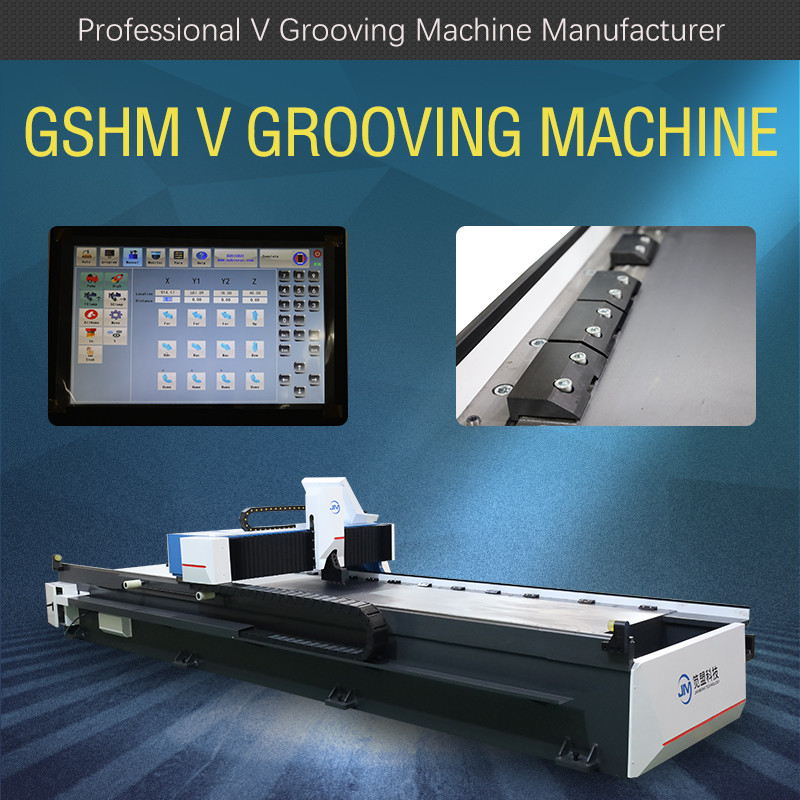

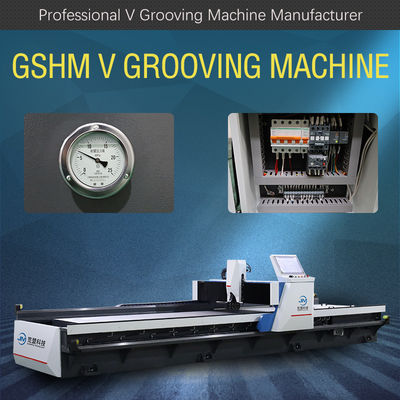

Anti-Skateboard V Groove Cutter Machine for Outdoor Public Furniture
Automatic calculation of inner and outer diameters
The system can automatically calculate the slot distance according to the input size and the selected inner or outer diameter function. Reduce operation difficulty and labor cost.
| No. | Name | Parameter | Unit | |
| 1 | Max. Width of metal sheet | 1250 | mm | |
| 2 | Max. Length of metal sheet | 4000 | mm | |
| 3 | Max. thickness(Stainless steel) | 5 | mm | |
| 4 | Min. Thickness of metal sheet | 0.4 | mm | |
| 5 | Min.distance of the V from edge | 8 | mm | |
| 6 | Max. cutting speed of X axis | 120 | m/min | |
| 7 | Max .return speed of X axis | 120 | m/min | |
| 8 | Max.distance of Y axis | 1250 | mm | |
| 9 | Resolution in Y axis | 0.001 | mm | |
| 10 | Repeated positioning accuracy | ±0.01 | mm | |
| 11 | Resolution in z axis | 0.001 | mm | |
| 12 | Repeated positioning accuracy | ±0.01 | mm | |
| 13 | Motor power | X axis | 5.5 | kW |
| Y1,Y2,Z axis | 1.0 | |||
| 14 | Overall dimension | Length | 5900 | mm |
| Width | 2250 | |||
| Height | 1550 | |||
