Professional V Groove Cutter Machine For Signage And Display Props With Intelligent System

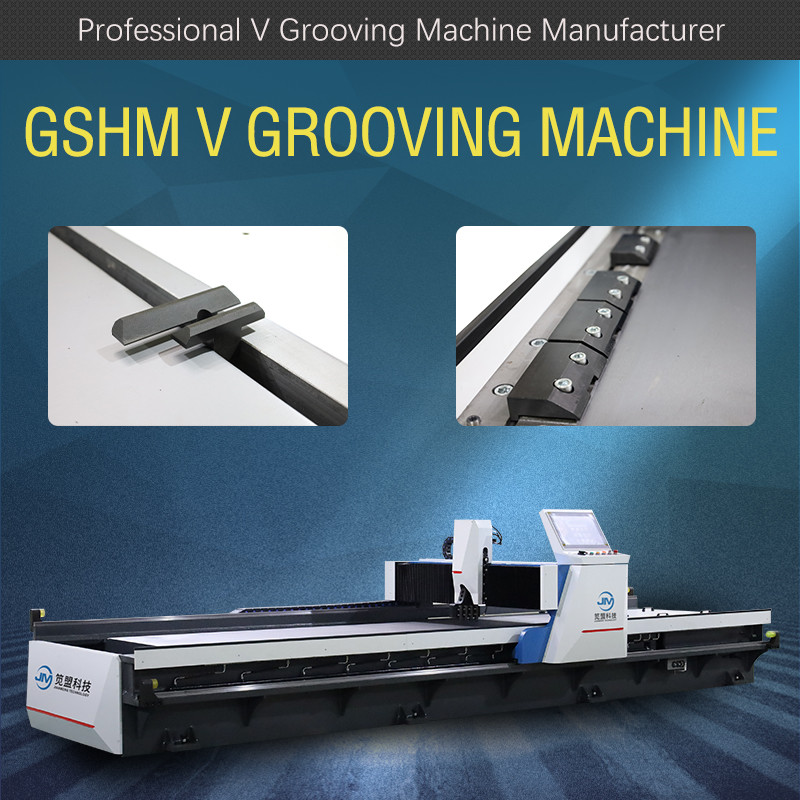

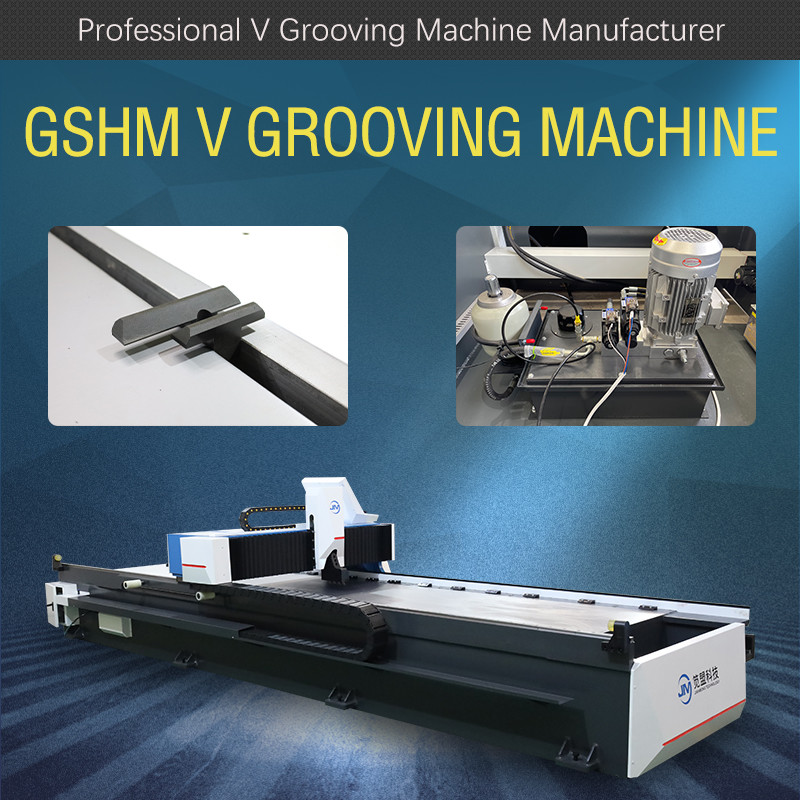

The tool holder (b) of GSHM v grooving machine is equipped with four alloy cutters to process the V-shape groove, so the cutting amount is evenly distributed to reduce the deformation of the machined parts. The micro cooling system can be selected to prolong the service life of the tool and reduce the production cost; The universal tool clamping mounting surface can meet the clamping requirements of various tools. The white steel tool and alloy tool are interchangeable; The tool carrier transfer device uses grinding grade ball screw and heavy-duty linear guide rail, so it has high accuracy.
| No. | Name | Parameter | Unit | |
| 1 | Max. Width of metal sheet | 1250 | mm | |
| 2 | Max. Length of metal sheet | 4000 | mm | |
| 3 | Max. thickness(Stainless steel) | 5 | mm | |
| 4 | Min. Thickness of metal sheet | 0.4 | mm | |
| 5 | Min.distance of the V from edge | 8 | mm | |
| 6 | Max. cutting speed of X axis | 120 | m/min | |
| 7 | Max .return speed of the X axis | 120 | m/min | |
| 8 | Max.distance of Y axis | 1250 | mm | |
| 9 | Resolution in Y1 axis | 0.001 | mm | |
| 10 | Repeated positioning accuracy | ±0.01 | mm | |
| 11 | Resolution in z axis | 0.001 | mm | |
| 12 | Repeated positioning accuracy | ±0.01 | mm | |
| 13 | Motor power | X axis | 5.5 | kW |
| Y1.Y2.Z axis | 1.0 | |||
| 14 | Overall dimension | Length | 5900 | mm |
| Width | 2000 | |||
| Height | 1550 | |||
