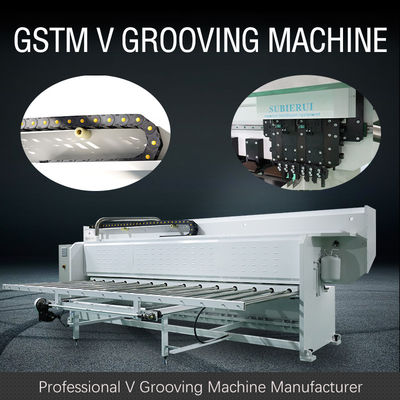

Industrial-grade V Groover Machine for Anti-Skateboard Stainless Steel Decoration
Intelligent obstacle avoidance of presser feet
The system automatically calculates the cutting position of each step of the workpiece, fixes the presser foot to automatically reserve the cutting space for the tool holder, and realizes intelligent obstacle avoidance.
| Name | Parameter | Unit | |
| Max. Width of metal sheet | 1250 | mm | |
| Max. Length of metal sheet | 4000 | mm | |
| Max. thickness(Stainless steel) | 6 | mm | |
| Min. Thickness of metal sheet | 0.4 | mm | |
| Min.distance of the V from edge | 10 | mm | |
| Max. cutting speed of X axis | 120 | m/min | |
| Max .return speed of the X axis | 120 | m/min | |
| Max.distance of Y axis | 1250 | mm | |
| Resolution in Y1 axis | 0.001 | mm | |
| Repeated positioning accuracy | ±0.01 | mm | |
| Resolution in z axis | 0.001 | mm | |
| Repeated positioning accuracy | ±0.01 | mm | |
| Motor power | X axis | 5.5 | kW |
| Y,Z1,Z2 axis | 1.0 | ||
| Overall dimension | Length | 5700 | mm |
| Width | 2350 | ||
| Height | 2000 | ||
