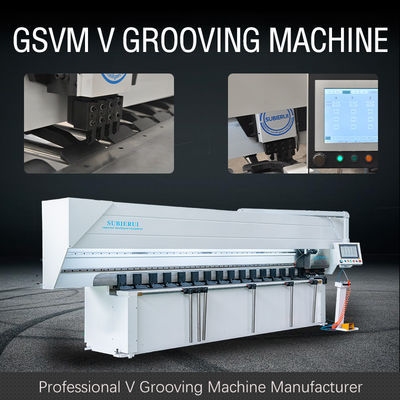

Sheet Metal V Groover Machine For Display Props V Grooving Machine Manufacturers

1 set
MOQ
Negotiate
Price
Sheet Metal V Groover Machine For Display Props V Grooving Machine Manufacturers
Features Gallery Product Description Request A Quote
Features
Specifications
Colour: White; Customizable
Machinable Length: 4000mm;Customizable
Machinable Width: 1250mm;Customizable
Processing Speed: 120m/min
Input Voltage: 220-415V
Controller: Touch Screen
High Light:

Sheet Metal V Groover Machine 4000mm

,

415V V Groover Machine For Display Props

,

4000mm V Grooving Machine Manufacturers
Basic Infomation
Place of Origin: China
Brand Name: JM
Certification: ISO9001 CE
Model Number: GSVM
Payment & Shipping Terms
Packaging Details: Waterproof packaging
Delivery Time: 10-30days
Payment Terms: T/T
Supply Ability: 30 sets per mouth
Product Description

Efficient Sheet Metal V Groover Machine for Display Props Manufacturing



Intelligent obstacle avoidance of presser feet
The system automatically calculates the cutting position of each step of the workpiece, fixes the presser foot to automatically reserve the cutting space for the tool holder, and realizes intelligent obstacle avoidance.



Customization and modification of equipment
Consulting for new equipment is not the only solution when there is a need to adjust process flow, change materials or improve the utilization of existing capacity in production. Our engineers can work with you to analyze and assess the current situation of your equipment, and combine your needs and desires to develop a complete set of solutions for you, from small-scale equipment customization to equipment modification. We will work with you to develop personalized maintenance schemes for all projects according to your technical needs so as to avoid costly out-of-chapter downtime, ensure the service life of equipment and improve the value of equipment itself. Take advantage of these strengths to maximize process and investment safety. Of course, equipment manufactured by other manufacturers is no exception.

Automatic rotation of tool holder
The tool holder can be rotated and fixed at 90 °. With the help of high power Y1 motor, the plate can be grooved in the transverse direction without manual rotation.



Name Parameter Unit
Max. Width of metal sheet 1250 mm
Max. Length of metal sheet 4000 mm
Max. thickness(Stainless steel) 6 mm
Min. Thickness of metal sheet 0.4 mm
Min.distance of the V from edge 10 mm
Max. cutting speed of X axis 120 m/min
Max .return speed of X axis 120 m/min
Max.distance of  Y axis 1250 mm
Resolution in Y axis 0.001 mm
Repeated positioning accuracy ±0.01 mm
Resolution in z axis 0.001 mm
Repeated positioning accuracy ±0.01 mm
Motor power X axis 5.5 kW
Y.Z axis 1.0
Overall dimension Length 5700 mm
Width 2350
Height 2000



Sheet Metal V Groover Machine For Display Props V Grooving Machine Manufacturers 0
