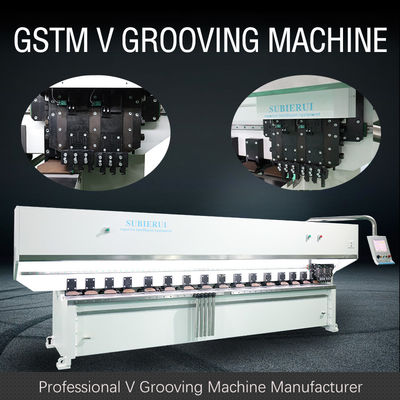

Heavy-Duty V Groover Machine For Cupboard Door Industry With Hydraulic Press
Automatic rotation of tool holder
The tool holder can be rotated and fixed at 90 °. With the help of high power Y1 motor, the plate can be grooved in the transverse direction without manual rotation.
| Name | Parameter | Unit | |
| Max. Width of metal sheet | 1250 | mm | |
| Max. Length of metal sheet | 4000 | mm | |
| Max. thickness(Stainless steel) | 6 | mm | |
| Min. Thickness of metal sheet | 0.4 | mm | |
| Min.distance of the V from edge | 10 | mm | |
| Max. cutting speed of X axis | 120 | m/min | |
| Max .return speed of the X axis | 120 | m/min | |
| Max.distance of Y axis | 1250 | mm | |
| Resolution in Y1 axis | 0.001 | mm | |
| Repeated positioning accuracy | ±0.01 | mm | |
| Resolution in z axis | 0.001 | mm | |
| Repeated positioning accuracy | ±0.01 | mm | |
| Motor power | X axis | 5.5 | kW |
| Y,Z1,Z2 axis | 1.0 | ||
| Overall dimension | Length | 5700 | mm |
| Width | 2350 | ||
| Height | 2000 | ||
