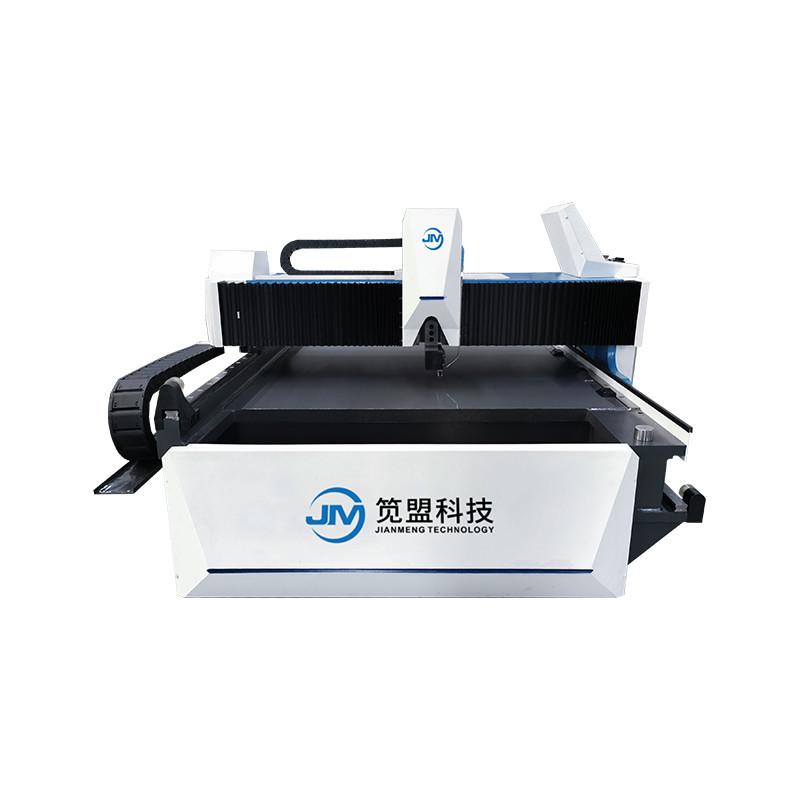

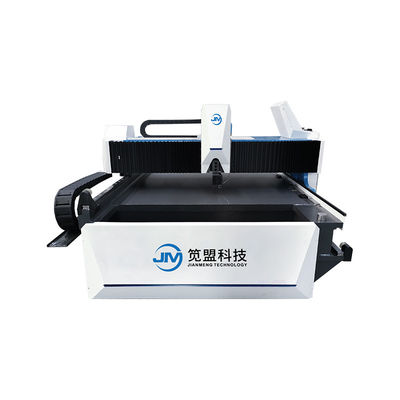

Hydraulic gantry Sheet metal double drive v cutting machine
Description:

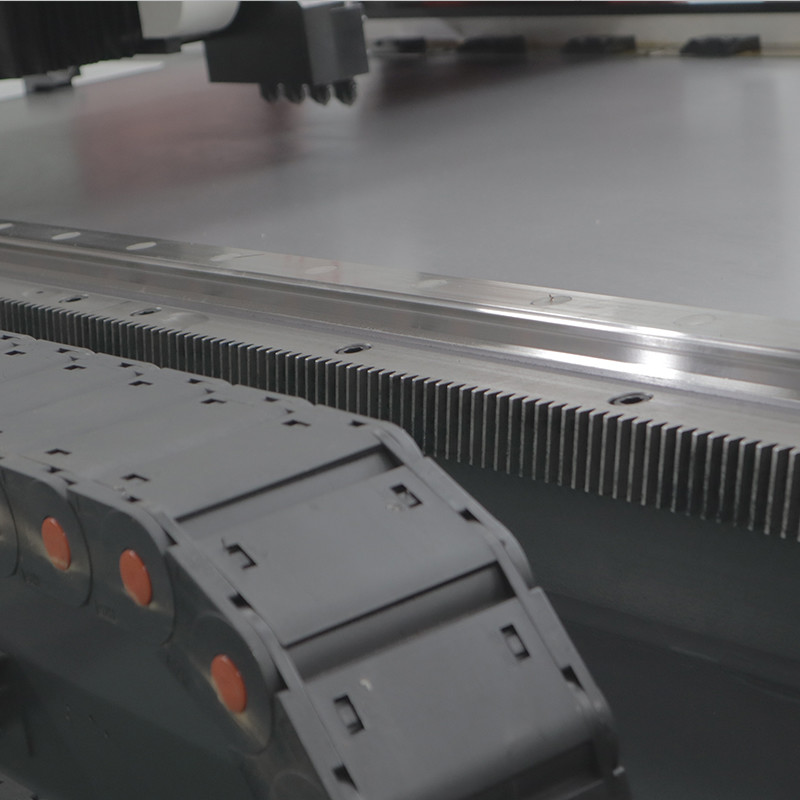

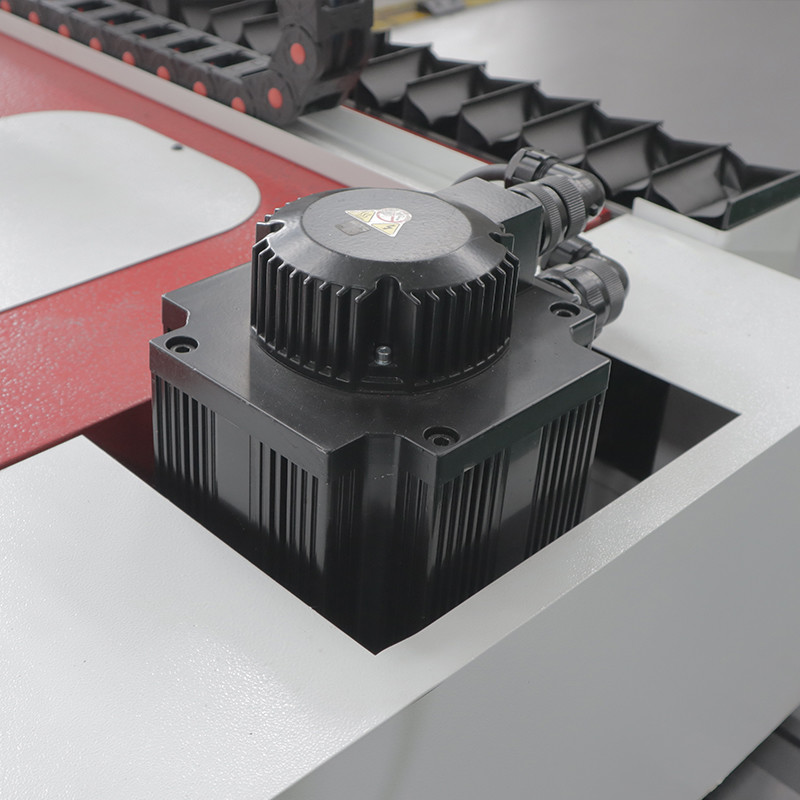

The equipment is jointly driven by two servo motors and two sets of gears and racks, with higher torque, faster speed and smoother operation.The system can automatically calculate the slot distance according to the input size and the selected inner or outer diameter function. Reduce operation difficulty and labor cost.For complex graphics, especially when both sides of plate need to be processed, two-dimensional graphics can be drawn directly by hand, visually and intuitively programmed, and the operating threshold is lowered at the same time.
| Name | Parameter | Unit | |
| Max. Width of metal sheet | 1250 | mm | |
| Max. Length of metal sheet | 4000 | mm | |
| Max. thickness(Stainless steel) | 5 | mm | |
| Min. Thickness of metal sheet | 0.4 | mm | |
| Min.distance of the V from edge | 8 | mm | |
| Max. cutting speed of X axis | 150 | m/min | |
| Max .return speed of the X axis | 150 | m/min | |
| Max.distance of Y axis | 1250 | mm | |
| Resolution in Y1 axis | 0.001 | mm | |
| Repeated positioning accuracy | ±0.01 | mm | |
| Resolution in z axis | 0.001 | mm | |
| Repeated positioning accuracy | ±0.01 | mm | |
| Motor power | X1,X2 axis | 5.0 | kW |
| Y1.Y2.Z axis | 1.0 | ||
| Overall dimension | Length | 5900 | mm |
| Width | 2100 | ||
| Height | 1550 | ||
Application:
Architectural decoration, bathroom, aluminum curtain wall, automobile manufacturing, mechanical equipment, electrical equipment,kitchen utensils, door industry, elevator equipment, advertising signs, equipment covers,precision parts, hardware products, aluminum and copper products, etc.
