Advertising V Groove Machine For Metal Retail Industry Aluminium Sheet Grooving Machine

1 set
MOQ
Negotiate
Price
Advertising V Groove Machine For Metal Retail Industry Aluminium Sheet Grooving Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Cutterbar Properties: Alloy Blades Or White Steel Blades
Temper Or Not: Yes
Input Voltage: 220-415V
Colour: Blue And White; Customizable
Processing Speed: 120m/min
Cooling Action: Air Cooling; Customizable Water Cooling
Drag Chain: Totally Enclosed
High Light:

Advertising V Groove Machine For Metal

,

V type Aluminium Sheet Grooving Machine

,

V Groove Machine For Metal Retail Industry

Basic Infomation
Place of Origin: Wuxi,China
Brand Name: JM
Certification: ISO9001,CE
Model Number: GSHM
Payment & Shipping Terms
Packaging Details: Waterproof packaging
Delivery Time: 10-30days
Payment Terms: T/T
Supply Ability: 30 sets per mouth
Product Description

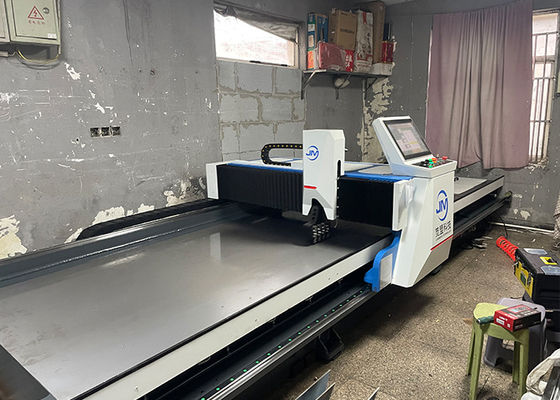

V Groove Machine for Metal Display Props in Retail Industry



Application:

Architectural decoration, bathroom, kitchen utensils, electrical equipment, precision parts, hardware products, door industry, elevator equipment, advertising signs, equipment covers, aluminum curtain wall, automobile manufacturing, mechanical equipment, aluminum and copper products, etc.



Spare parts Service
The equipment and units in SUBIERUI have a long service life. The original parts can be found in our spare parts warehouse regardless of the year the equipment was shipped. Our technical service personnel are familiar with all manufacturers' equipment, from the initial assembly of new equipment to the selection of spare parts, and can provide you with professional assistance, even from other manufacturers..



The crossbeam of GSHM v grooving machine is driven by high-precision helical rack and guide rail with grinding helical gear. The moving speed can be adjusted by frequency conversion. The dual guide rail structure makes the crossbeam chip feeding process stable and efficient.

Customization and modification of equipment
Consulting for new equipment is not the only solution when there is a need to adjust process flow, change materials or improve the utilization of existing capacity in production. Our engineers can work with you to analyze and assess the current situation of your equipment, and combine your needs and desires to develop a complete set of solutions for you, from small-scale equipment customization to equipment modification. We will work with you to develop personalized maintenance schemes for all projects according to your technical needs so as to avoid costly out-of-chapter downtime, ensure the service life of equipment and improve the value of equipment itself. Take advantage of these strengths to maximize process and investment safety. Of course, equipment manufactured by other manufacturers is no exception.

No. Name Parameter Unit
1 Max. Width of metal sheet 1250 mm
2 Max. Length of metal sheet 4000 mm
3 Max. thickness(Stainless steel) 5 mm
4 Min. Thickness of metal sheet 0.4 mm
5 Min.distance of the V from edge 8 mm
6 Max. cutting speed of X axis 120 m/min
7 Max .return speed of the X axis 120 m/min
8 Max.distance of Y axis 1250 mm
9 Resolution in Y1 axis 0.001 mm
10 Repeated positioning accuracy ±0.01 mm
11 Resolution in z axis 0.001 mm
12 Repeated positioning accuracy ±0.01 mm
13 Motor power X axis 5.5 kW
Y1.Y2.Z axis 1.0
14 Overall dimension Length 5900 mm
Width 2000
Height

1550

Advertising V Groove Machine For Metal Retail Industry Aluminium Sheet Grooving Machine 0   Advertising V Groove Machine For Metal Retail Industry Aluminium Sheet Grooving Machine 1
