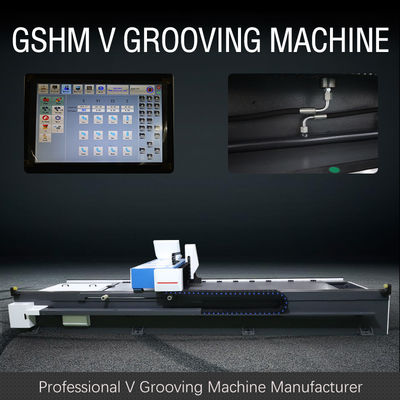

CE V Groove Machine For Metal Signage Fabrication CNC V Grooving Machine

1 set
MOQ
Negotiate
Price
CE V Groove Machine For Metal Signage Fabrication CNC V Grooving Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Colour: Blue And White; Customizable
Cutterbar Properties: Alloy Blades Or White Steel Blades
Temper Or Not: Yes
Input Voltage: 220-415V
Processing Speed: 120m/min
Controller Position: On The Gantry; Customizable To Separate
High Light:

CE V Groove Machine For Metal

,

120m/min V Groove Machine For Metal

,

Signage Fabrication CNC V Grooving Machine

Basic Infomation
Place of Origin: Wuxi,China
Brand Name: SUBIERUI
Certification: ISO9001,CE
Model Number: GSHM
Payment & Shipping Terms
Packaging Details: Waterproof packaging
Delivery Time: 10-30days
Payment Terms: T/T
Supply Ability: 30 sets per mouth
Product Description

Professional V Groove Machine for Metal Signage Fabrication

Tool holder self-lubricating system
The tool holder of the equipment is equipped with self-lubricating system, which can move up and down at the same time and self-lubricate the tool holder, greatly reducing the internal losses of the tool holder and improving the service life of the tool holder.



Spare parts Service
The equipment and units in SUBIERUI have a long service life. The original parts can be found in our spare parts warehouse regardless of the year the equipment was shipped. Our technical service personnel are familiar with all manufacturers' equipment, from the initial assembly of new equipment to the selection of spare parts, and can provide you with professional assistance, even from other manufacturers..



The crossbeam of GSHM v grooving machine is driven by high-precision helical rack and guide rail with grinding helical gear. The moving speed can be adjusted by frequency conversion. The dual guide rail structure makes the crossbeam chip feeding process stable and efficient.

No. Name Parameter Unit
1 Max. Width of metal sheet 1250 mm
2 Max. Length of metal sheet 4000 mm
3 Max. thickness(Stainless steel) 5 mm
4 Min. Thickness of metal sheet 0.4 mm
5 Min.distance of the V from edge 8 mm
6 Max. cutting speed of X axis 120 m/min
7 Max .return speed of the X axis 120 m/min
8 Max.distance of Y axis 1250 mm
9 Resolution in Y1 axis 0.001 mm
10 Repeated positioning accuracy ±0.01 mm
11 Resolution in z axis 0.001 mm
12 Repeated positioning accuracy ±0.01 mm
13 Motor power X axis 5.5 kW
Y1.Y2.Z axis 1.0
14 Overall dimension Length 5900 mm
Width 2000
Height 1550



CE V Groove Machine For Metal Signage Fabrication CNC V Grooving Machine 0
