High-Precision Sheet Metal Grooving Machine For Shower Room Wall Panels
Keep all functions of the standard model
Automatic calculation of internal and external diameters, automatic cycle programming, visual picture editing, bending effect display, tool holder self-lubricating system, intermittent working hydraulic station, etc.

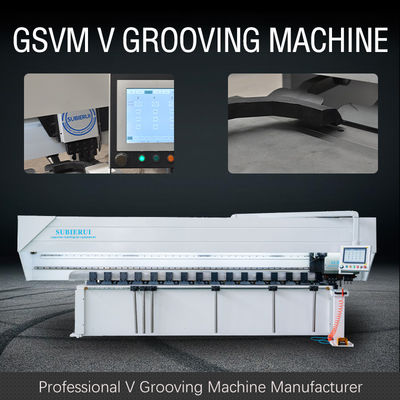

GSVM vertical high-speed v grooving machine is a professional v grooving equipment, which is applicable to all metal plates, such as stainless steel plates, copper plates, aluminum plates, galvanized plates and so on. The v grooving is an auxiliary process of sheet bending forming. At the bending line where the sheet needs to be bent and formed, special cutters are used to cut V-shaped grooves, so that the material is easy to be bent and formed, and the R outside the bending angle can be minimized, and then bent and formed with a bending machine or manually, The processing is completed by this method and meets the product appearance requirements. The depth, width and angle of the V-shaped groove can be ensured by the feed rate and the shape of the cutting tools during machining.
| No. | Name | Parameter | Unit | |
| 1 | Max. Width of metal sheet | 1250 | mm | |
| 2 | Max. Length of metal sheet | 4000 | mm | |
| 3 | Max. thickness(Stainless steel) | 6 | mm | |
| 4 | Min. Thickness of metal sheet | 0.4 | mm | |
| 5 | Min.distance of the V from edge | 10 | mm | |
| 6 | Max. cutting speed of X axis | 120 | m/min | |
| 7 | Max .return speed of the X axis | 120 | m/min | |
| 8 | Max.distance of Y axis | 1250 | mm | |
| 9 | Resolution in Y1 axis | 0.001 | mm | |
| 10 | Repeated positioning accuracy | ±0.01 | mm | |
| 11 | Resolution in z axis | 0.001 | mm | |
| 12 | Repeated positioning accuracy | ±0.01 | mm | |
| 13 | Motor power | X axis | 5.5 | kW |
| Y.Z axis | 1.0 | |||
| 14 | Overall dimension | Length | 5700 | mm |
| Width | 2350 | |||
| Height | 2000 | |||
