Horizontal CNC V Cutting Machine V Groover Machine For Metal Curtain Wall Panels 1560

1 set
MOQ
Negotiate
Price
Horizontal CNC V Cutting Machine V Groover Machine For Metal Curtain Wall Panels 1560
Features Gallery Product Description Request A Quote
Features
Specifications
Colour: Blue And White; Customizable
Cooling Action: Air Cooling; Customizable Water Cooling
Input Voltage: 380V; Customizable
Machinable Length: 6000mm;Customizable
Machinable Width: 1500mm;Customizable
Temper Or Not: Yes
High Light:

Horizontal CNC V Cutting Machine 1560

,

CE CNC V Cutting Machine 1560

,

V Groover Machine For Metal Curtain Wall

Basic Infomation
Place of Origin: Wuxi,China
Brand Name: JM
Certification: ISO9001,CE
Model Number: GSFM
Payment & Shipping Terms
Packaging Details: Waterproof packaging
Delivery Time: 10-30days
Payment Terms: T/T
Supply Ability: 30 sets per mouth
Product Description

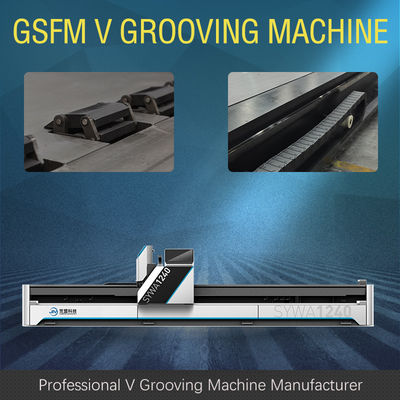

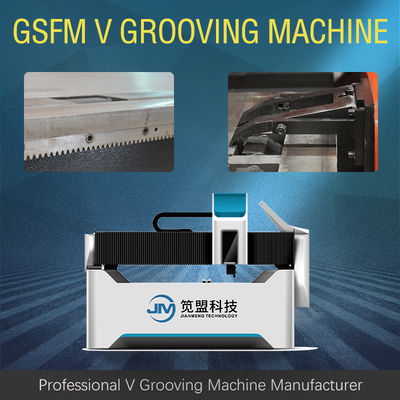

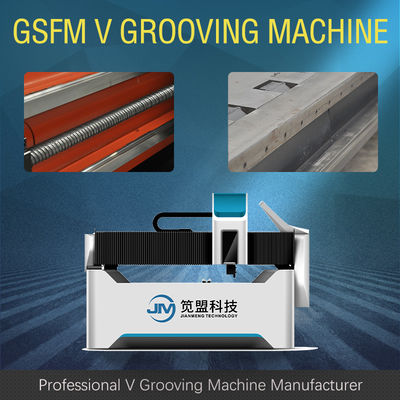

CNC V Groove Cutting Machine For Metal Curtain Wall Panels, Horizontal Type, Model 1560



Automatic calculation of inner and outer diameters
The system can automatically calculate the slot distance according to the input size and the selected inner or outer diameter function. Reduce operation difficulty and labor cost.



The materials to be processed by GSFM v grooving machine are fixed by hydraulic clamping system, and flexible clamping and unloading devices are used: high-precision guidance system, position measurement system and hydraulic balancing function, to meet the needs of processing board surface free of trauma as far as possible. The hydraulic pressure is adjustable and reliable. The hydraulic system is equipped with an accumulator for compensation. The motor works in a clearance manner to save energy and control oil temperature.

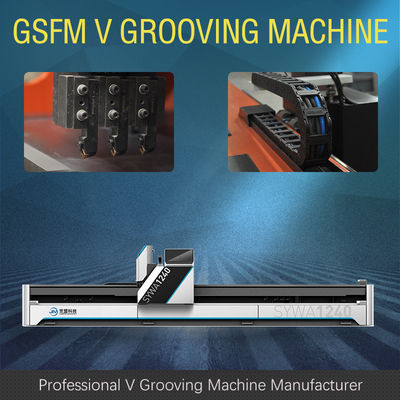

Tool holder self-lubricating system
The tool holder of the equipment is equipped with self-lubricating system, which can move up and down at the same time and self-lubricate the tool holder, greatly reducing the internal losses of the tool holder and improving the service life of the tool holder.


No. Name Parameter Unit
1 Max. Width of metal sheet 1500 mm
2 Max. Length of metal sheet 6000 mm
3 Max. thickness(Stainless steel) 5 mm
4 Min. Thickness of metal sheet 0.4 mm
5 Min.distance of the V from edge 8 mm
6 Max. cutting speed of X axis 120 m/min
7 Max .return speed of X axis 120 m/min
8 Max.distance of  Y axis 1250 mm
9 Resolution in Y axis 0.001 mm
10 Repeated positioning accuracy ±0.01 mm
11 Resolution in z axis 0.001 mm
12 Repeated positioning accuracy ±0.01 mm
13 Motor power X axis 5.0 kW
U 3.0
Y1,Y2,Z axis 1.0
14 Overall dimension Length 7900 mm
Width 2350
Height 1550
