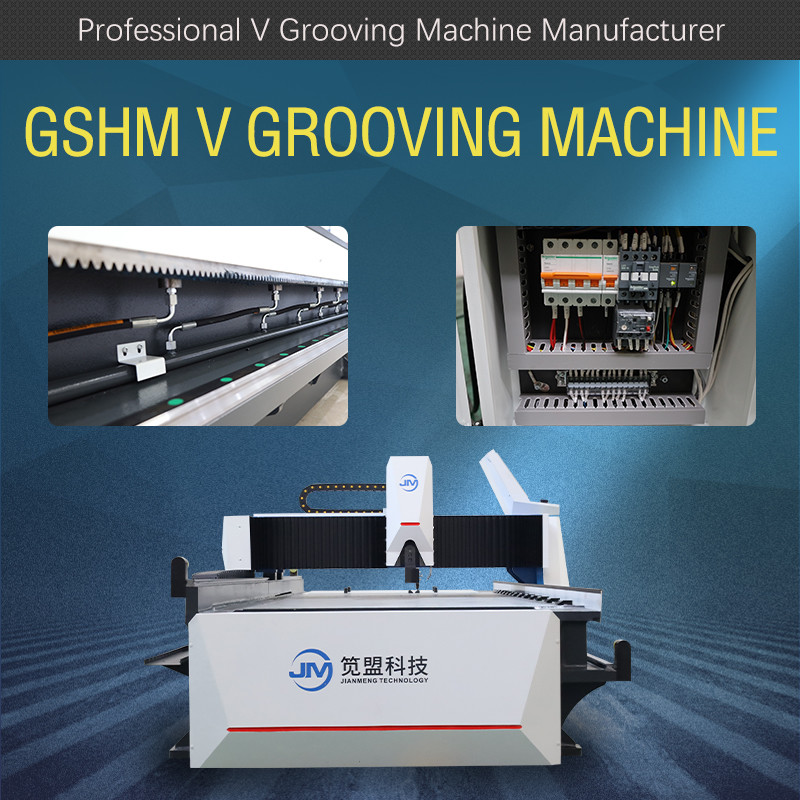

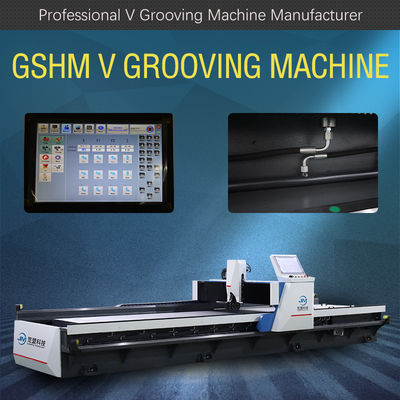

High-Speed Automatic Horizontal V Groover Machine For Stainless Steel Processing In Metal Curtain Wall Industry
Automatic Cycle Programming
The system can automatically cycle the workpiece according to the amount of cycle input without input one by one, which greatly reduces programming time and improves productivity.
| No. | Name | Parameter | Unit | |
| 1 | Max. Width of metal sheet | 1250 | mm | |
| 2 | Max. Length of metal sheet | 4000 | mm | |
| 3 | Max. thickness(Stainless steel) | 5 | mm | |
| 4 | Min. Thickness of metal sheet | 0.4 | mm | |
| 5 | Min.distance of the V from edge | 8 | mm | |
| 6 | Max. cutting speed of X axis | 120 | m/min | |
| 7 | Max .return speed of the X axis | 120 | m/min | |
| 8 | Max.distance of Y axis | 1250 | mm | |
| 9 | Resolution in Y1 axis | 0.001 | mm | |
| 10 | Repeated positioning accuracy | ±0.01 | mm | |
| 11 | Resolution in z axis | 0.001 | mm | |
| 12 | Repeated positioning accuracy | ±0.01 | mm | |
| 13 | Motor power | X axis | 5.5 | kW |
| Y1.Y2.Z axis | 1.0 | |||
| 14 | Overall dimension | Length | 5900 | mm |
| Width | 2000 | |||
| Height | 1550 | |||
