Automated V Grooving Machine For Stainless Steel Decoration And Metal Curtain Wall - Model 1225
Stable and reliable electrical
The fully enclosed drag chain, high-quality sports cable and electronic components ensure the stability and reliability of the electrical system of the SUBIERUI slot planer. High quality is accompanied by its ultra-high service life and durability, so that it can cope with the long time non-stop working state.

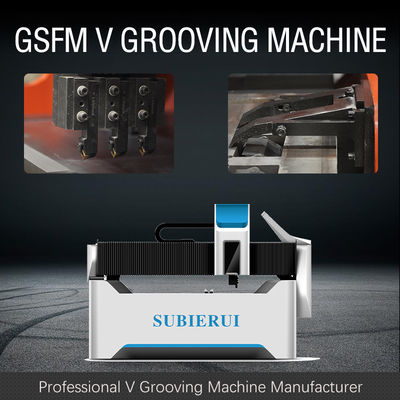

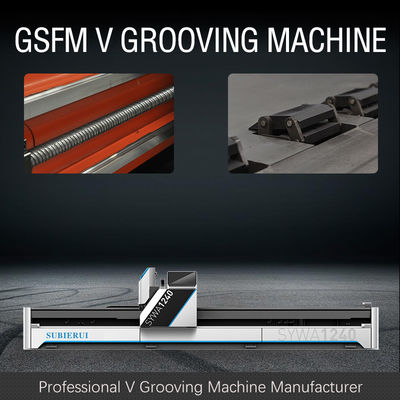

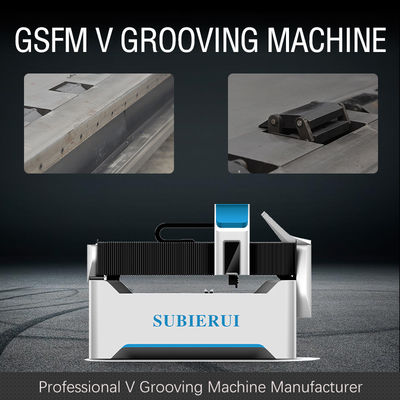

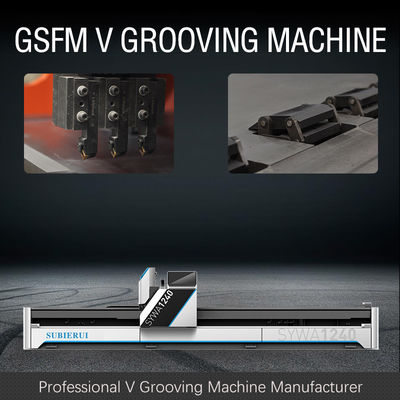

GSFM horizontal high-speed grooving v machine is a professional v grooving equipment, which is applicable to all metal plates, such as stainless steel plates, copper plates, aluminum plates, galvanized plates and so on. The v grooving is an auxiliary process of sheet bending forming. At the bending line where the sheet needs to be bent and formed, special cutters are used to cut V-shaped grooves, so that the material is easy to be bent and formed, and the R outside the bending angle can be minimized, and then bent and formed with a bending machine or manually, The processing is completed by this method and meets the product appearance requirements. The depth, width and angle of the V-shaped groove can be ensured by the feed rate and the shape of the cutting tools during machining.
| No. | Name | Parameter | Unit | |
| 1 | Max. Width of metal sheet | 1250 | mm | |
| 2 | Max. Length of metal sheet | 2500 | mm | |
| 3 | Max. thickness(Stainless steel) | 5 | mm | |
| 4 | Min. Thickness of metal sheet | 0.4 | mm | |
| 5 | Min.distance of the V from edge | 10 | mm | |
| 6 | Max. cutting speed of X axis | 120 | m/min | |
| 7 | Max .return speed of the X axis | 120 | m/min | |
| 8 | Max.distance of Y axis | 1250 | mm | |
| 9 | Resolution in Y1 axis | 0.001 | mm | |
| 10 | Repeated positioning accuracy | ±0.01 | mm | |
| 11 | Resolution in z axis | 0.001 | mm | |
| 12 | Repeated positioning accuracy | ±0.01 | mm | |
| 13 | Motor power | X axis | 5.5 | kW |
| Y1 | 3.0 | |||
| Y2.U,Z axis | 1.0 | |||
| 14 | Overall dimension | Length | 4400 | mm |
| Width | 2580 | |||
| Height | 1550 | |||
