Horizontal(Gantry) V Grooving Machine For Stainless Steel Decoration
Description:

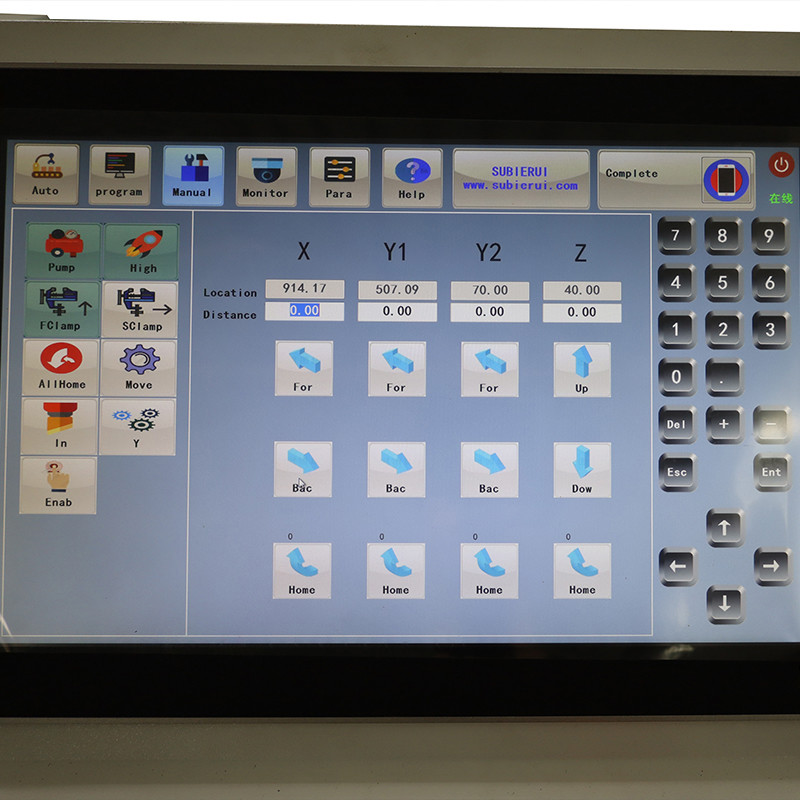

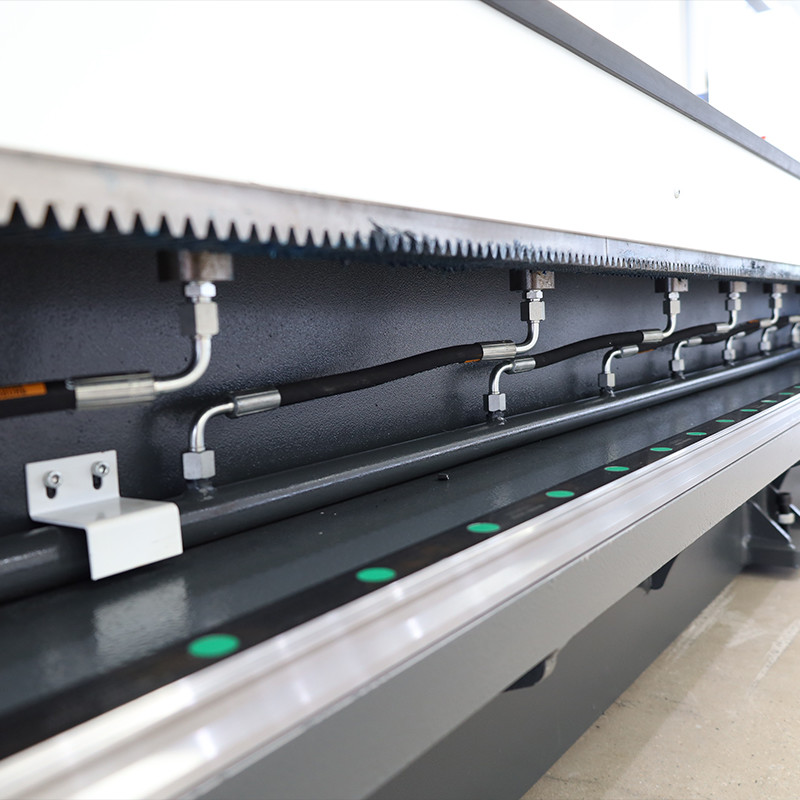

The materials to be processed by GSHM v grooving machine are fixed by hydraulic clamping system, and flexible clamping and unloading devices are used: high-precision guidance system, position measurement system and hydraulic balancing function, to meet the needs of processing board surface free of trauma as far as possible. The hydraulic pressure is adjustable and reliable. The hydraulic system is equipped with an accumulator for compensation. The motor works in a clearance manner to save energy and control oil temperature.
| No. | Name |
Parameter |
Unit | |
| 1 |
Max. Width of metal sheet |
1250 |
mm |
|
| 2 |
Max. Length of metal sheet |
4000 |
mm |
|
| 3 |
Max. thickness(Stainless steel) |
5 |
mm |
|
| 4 |
Min. Thickness of metal sheet |
0.4 |
mm |
|
| 5 |
Min.distance of the V from edge |
8 |
mm |
|
| 6 |
Max. cutting speed of X axis |
120 |
m/min |
|
| 7 |
Max .return speed of the X axis |
120 |
m/min |
|
| 8 |
Max.distance of Y axis |
1250 |
mm |
|
| 9 |
Resolution in Y1 axis |
0.001 |
mm |
|
| 10 |
Repeated positioning accuracy |
±0.01 |
mm |
|
| 11 |
Resolution in z axis |
0.001 |
mm |
|
| 12 |
Repeated positioning accuracy |
±0.01 |
mm |
|
| 13 |
Motor power |
X axis |
5.5 |
kW |
|
Y1.Y2.Z axis |
1.0 | |||
| 14 |
Overall dimension |
Length |
5900 | mm |
|
Width |
2000 | |||
|
Height |
1550 | |||
Application:
Architectural decoration, bathroom, kitchen utensils, door industry, elevator equipment, advertising signs, equipment covers, aluminum curtain wall, precision parts, hardware products, automobile manufacturing, mechanical equipment, electrical equipment, aluminum and copper products, etc.
